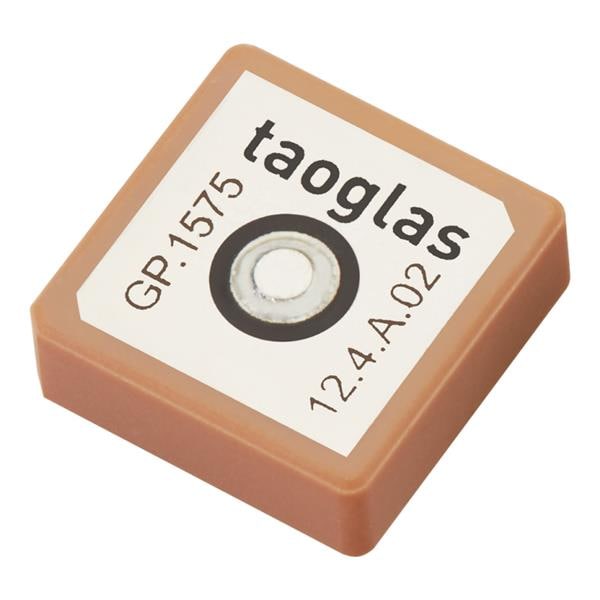

Taoglas GP.1575.12.4.A.02 Passive Antenna GP.1575.12.4.A.02 GPS/Galileo 12*12*4mm 1575.42MHz Patch Antenna

Gain: - 0.5 dBi

VSWR: 1.5

Style: Ceramic

Width: 12 mm

Height: 4 mm

Length: 12 mm

Bandwidth: 8 MHz

Impedance: 50 Ohms

Technology: GPS

Application: Navigation, Position Tracking System

Unit Weight: 6 g

Polarization: RHCP

Mounting Style: Adhesive Mount

Number of Bands: 1 Band

Center Frequency: 1.57542 GHz

Mechanical Style: Patch

Ground Plane Size: 50 mm x 50 mm

Maximum Frequency: 1.578 GHz

Minimum Frequency: 1.572 GHz

Termination Style: Pin

Protocol - GPS, GLONASS: Galileo, GPS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
