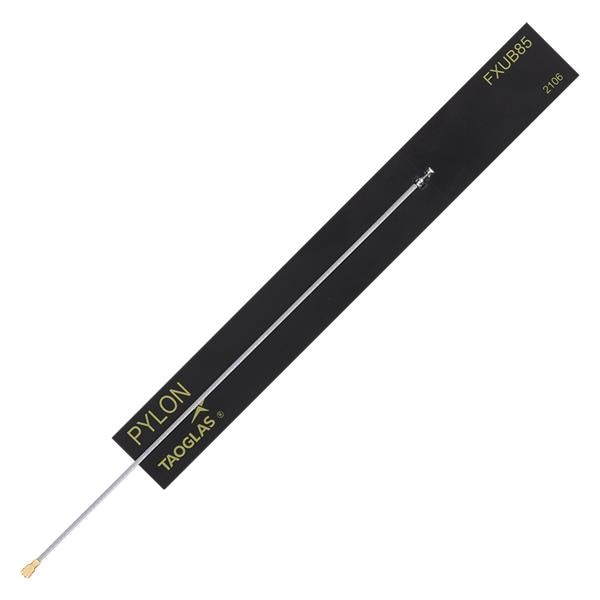

Taoglas FXUB85.07.0150C Passive Antenna Pylon Wideband 5G Flexible PCB antenna 600MHz 8GHz, with I-PEX MHFIU.FL

Gain: 2.1 dBi, 2.4 dBi, 1.9 dBi, 1.8 dBi, 5.3 dBi, 5.6 dBi, 4.5 dBi

Style: I-Pad Flex

Width: 21 mm

Height: 0.3 mm

Length: 163 mm

Frequency: 600 MHz to 8 GHz

Impedance: 50 Ohms

Cable Type: 150 mm RF1.37

Application: IoT Devices, Connected Devices, UAVs, Autonomous Vehicles, Precision Tracking, Industrial Robotics, Factory Automation, Field Body Sensors, Wearables

Cable Length: 150 mm

Polarization: Linear

Power Rating: 5 W

Mounting Style: Adhesive Mount

Frequency Range: 600 MHz to 8 GHz

Number of Bands: 7 Band

Center Frequency: 657 MHz, 700 MHz, 800 MHz, 850 MHz, 900 MHz, 1474 MHz, 1700 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2600 MHz, 3500 MHz, 5500 MHz, 5800 MHz, 6000 MHz, 6500 MHz

Mechanical Style: PCB Trace

Maximum Frequency: 8 GHz

Minimum Frequency: 600 MHz

Termination Style: Connector

Antenna Connector Type: I-PEX MHF

Protocol - WiFi - 802.11: 802.11, WiFi, WLAN, WiMAX

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 3G/4G/5G NR, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, WCDMA, HSPA, GPRS
