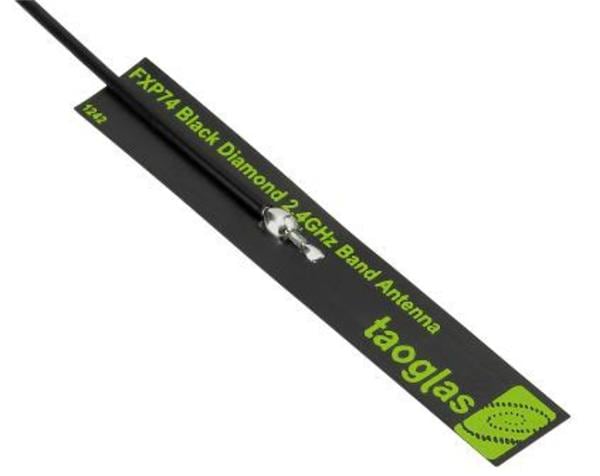

Taoglas FXP74.07.0100A Passive Antenna FXP74 2.4GHz Black Diamond Flex PCB Antenna, 100mm oe1.13, I-PEX MHFIU.FL

Gain: 4 dBi

VSWR: 2:1

Style: I-Bar Flex

Width: 7 mm

Height: 0.1 mm

Length: 47 mm

Impedance: 50 Ohms

Cable Type: RF1.13

Application: Wireless Application

Unit Weight: 1 g

Cable Length: 100 mm

Polarization: Linear

Power Rating: 5 W

Mounting Style: Adhesive Mount

Number of Bands: 1 Band

Center Frequency: 2.45 GHz

Mechanical Style: PCB Trace

Maximum Frequency: 2.4835 GHz

Minimum Frequency: 2.4 GHz

Termination Style: Connector

Protocol - Sub GHz: IoT, ISM, RFID

Antenna Connector Type: U.FL Female

Protocol - WiFi - 802.11: 802.11, WiFi, WLAN

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
