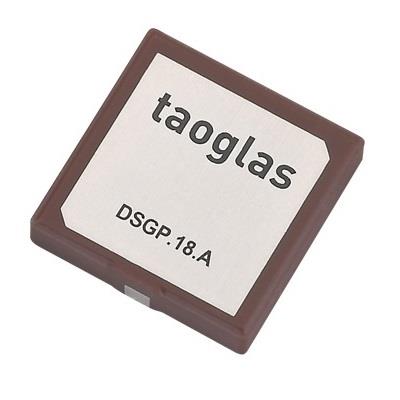

Taoglas DSGP.1575.18.4.A.02 Passive Antenna DSGP.1575.18.4 18*18*4mm GPS L1 & Galileo E1 Ceramic Patch

Gain: 4.2 dBi

Style: Ceramic

Width: 18 mm

Height: 4 mm

Length: 18 mm

Impedance: 50 Ohms

Technology: GPS L1 / Galileo E1

Application: Telematics, Vehicle Tracking/Fleet Management System, Wearable, Navigation

Unit Weight: 5.800 g

Mounting Style: PCB Mount

Number of Bands: 1 Band

Center Frequency: 1.575 GHz

Mechanical Style: Patch

Ground Plane Size: 50 mm x 50 mm

Maximum Frequency: 1.576443 GHz

Minimum Frequency: 1.574397 GHz

Termination Style: SMD/SMT

Moisture Sensitive: Yes

Protocol - GPS, GLONASS: Galileo, GPS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
