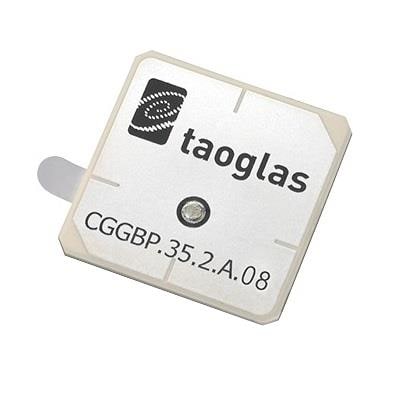

Taoglas CGGBP.35.2.A.08 Passive Antenna GPS/GLONASS/BEIDOU Patch Antenna 35*35*2mm - 2.4mm pin

Gain: 3.45 dBi, 3.68 dBi, 4.87 dBi

Style: Ceramic

Width: 35.5 mm

Height: 2 mm

Length: 35.5 mm

Impedance: 50 Ohms

Technology: GPS, GLONASS, Galileo, BeiDou L1

Application: Agriculture, Defense, Marine, Transportation

Unit Weight: 8.600 g

For Use With: M2M Devices, Vehicle Navigation Systems

Mounting Style: PCB Mount

Electrical Type: Embedded

Number of Bands: 3 Band

Center Frequency: 1.561 GHz, 1.575 GHz, 1.602 GHz

Mechanical Style: Patch

Maximum Frequency: 1.607 GHz

Minimum Frequency: 1.55952 GHz

Termination Style: Pin

Protocol - GPS, GLONASS: BEIDOU, Galileo, GLONASS, GPS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
