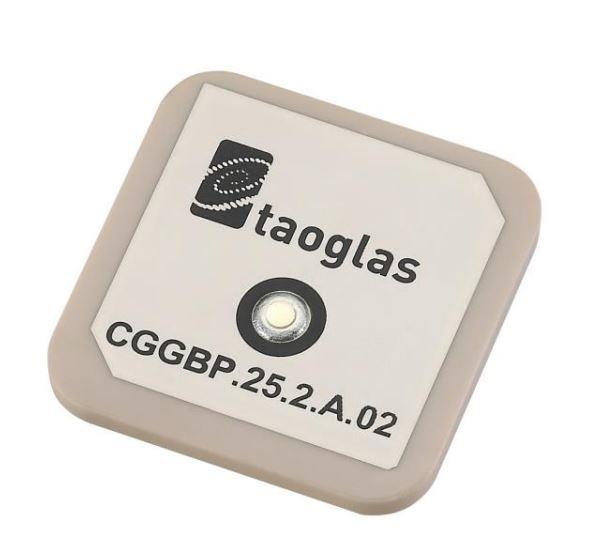

Taoglas CGGBP.25.2.A.02 Passive Antenna GPS/GLONASS/BEIDOU Patch Antenna 25*25*2mm

Gain: 3.25 dBi, 3.44 dBi, 4.35 dBi

Style: Ceramic

Width: 25 mm

Height: 2 mm

Length: 25 mm

Impedance: 50 Ohms

Application: Satellite Applications

Unit Weight: 4 g

Mounting Style: PCB Mount

Electrical Type: Embedded

Number of Bands: 3 Band

Center Frequency: 1.561 GHz, 1.575 GHz, 1.602 GHz

Mechanical Style: Patch

Ground Plane Size: 70 mm x 70 mm

Maximum Frequency: 1.607 GHz

Minimum Frequency: 1.5561 GHz

Termination Style: Pin

Protocol - GPS, GLONASS: BEIDOU, Galileo, GLONASS, GPS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
