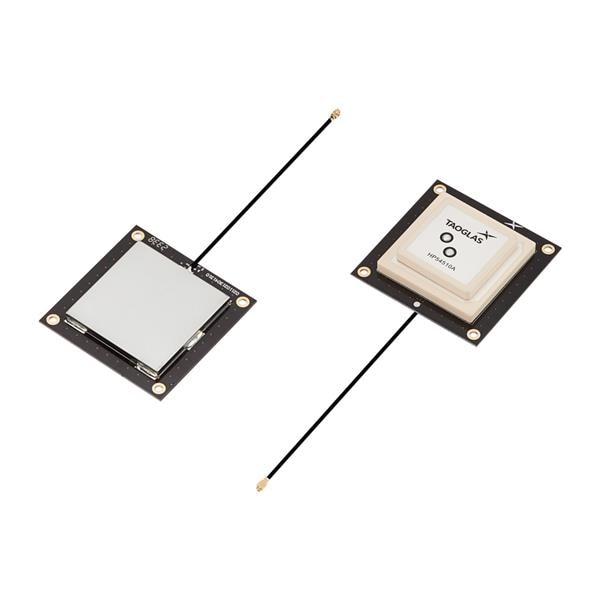

Taoglas AHP54510.07.0100C GNSS Antenna GNSS L1,L5 L-Band Dual Feed Stacked 45*45*10mm Patch I-PEX MHFI 100mm 1.37

Gain: 4.82 dBi, 4.94 dBi, 5.06 dBi, 5.08 dBi, 4.15 dBi

Style: Square

Width: 45 mm

Height: 10 mm

Length: 45 mm

Impedance: 50 Ohms

Cable Type: 1.37mm Coaxial Cable

Application: Wearables, Navigation

Cable Length: 100 mm

Polarization: RHCP

Mounting Style: PCB Mount

Frequency Range: 1.166 GHz to 1.61 GHz

Number of Bands: 5 Band

Mechanical Style: Square

Maximum Frequency: 1.61 GHz

Minimum Frequency: 1.166 GHz

Termination Style: Connector

Antenna Connector Type: IPEX MHF

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
