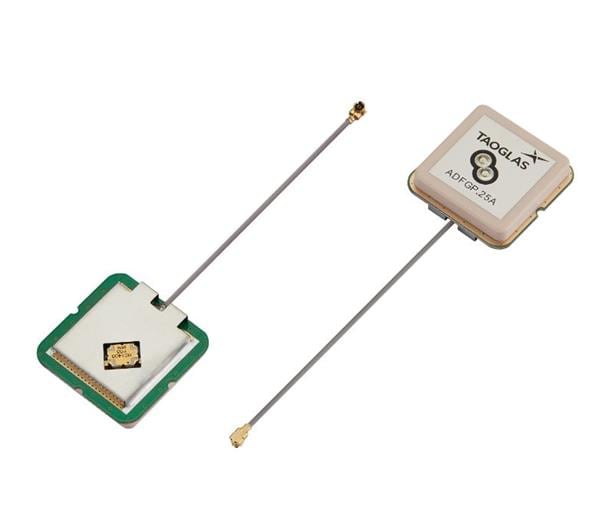

Taoglas ADFGP.25A.07.0060A MIMO ADFGP.25A Embedded Dual Pin Active GNSS Patch Antenna, I-PEX MHFIU.FL

Gain: - 3 dBi, - 2.5 dBi, - 4 dBi

VSWR: 2.0:1, 2.0:1, 2.0:1

Style: Stacked

Width: 25 mm

Height: 7.5 mm

Length: 25 mm

Impedance: 50 Ohms

Cable Type: RF1.13

Application: Positioning, Navigation Systems, UAVs, Robotics, Autonomous Vehicles, Micro-Mobility Solutions, Mapping, GIS, Transportation, Telematics, Precision Agriculture, Public Safety, Search, Rescure, RTK Systems

Cable Length: 60 mm

Polarization: RHCP

REACH - SVHC: Details

Mounting Style: PCB Mount

Electrical Type: Active Embedded

Number of Bands: 3 Band

Center Frequency: 1.561 GHz, 1.57542 GHz, 1.602 GHz

Mechanical Style: Patch

Ground Plane Size: 70 mm x 70 mm

Maximum Frequency: 1.606 GHz

Minimum Frequency: 1.561 GHz

Termination Style: Pin

Antenna Connector Type: U.FL

Protocol - GPS, GLONASS: BEIDOU, Galileo, GLONASS, GPS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
