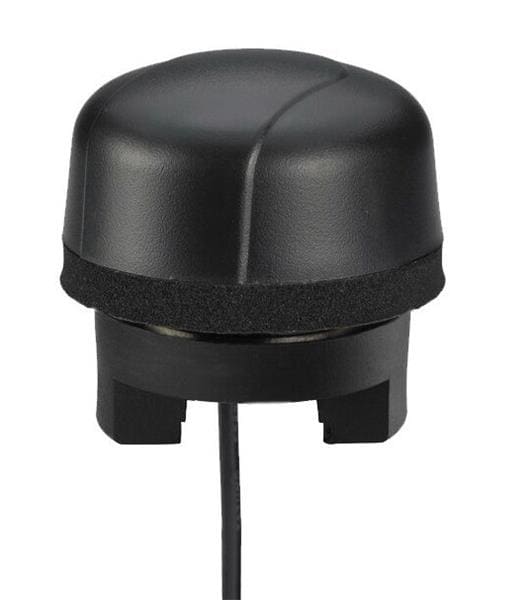

Taoglas A.03.C.1001111 Vehicle Antennas Hercules A.03 GPS/Galileo Permanent Mount, 10m RG-174 Antenna oe48*29mm

VSWR: 2

Style: Dome

Height: 29 mm

IP Rating: IP67, IP69K

Impedance: 50 Ohms

Cable Type: RG-174

Application: M2M, Telematics, Remote Monitor, Timing for Base Station, Vehicle Fleet Tracking

Cable Length: 10 m

Polarization: RHCP

Mounting Style: Direct / Permanent Mount

Number of Bands: 1 Band

Center Frequency: 1.57542 GHz

Mechanical Style: Module

Ground Plane Size: 40 dB

Maximum Frequency: 1.57742 GHz

Minimum Frequency: 1.57342 GHz

Termination Style: Connector

Antenna Connector Type: SMA Male

Protocol - GPS, GLONASS: GPS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
