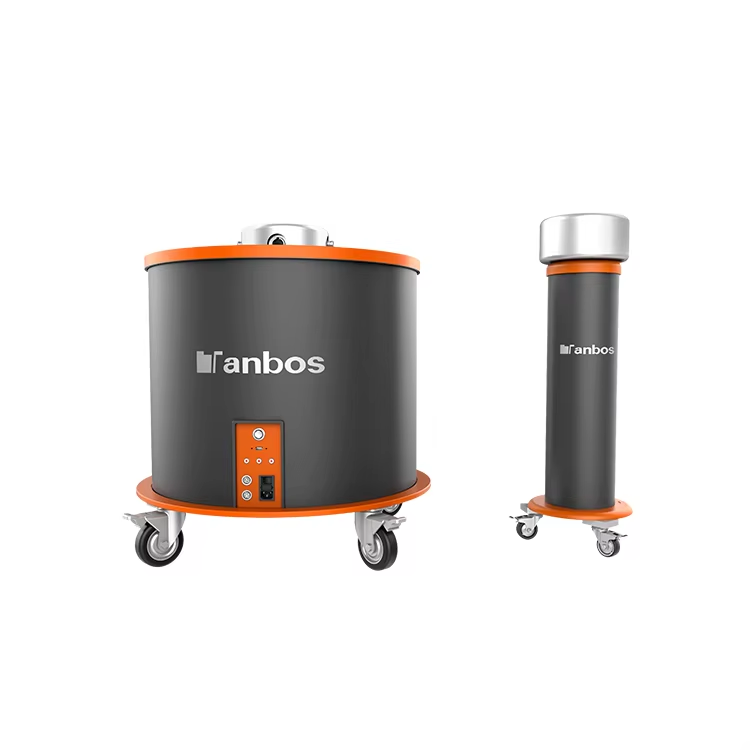

Tanbos TV30 DAC Test & Diagnosis System

Input voltage: 220V AC±10%, 50Hz

Output voltage:

DAC: 0-30kV(peak) / 0-21.2kV (rms)

Precision ±1%

Resolution 0.1kV

Frequency range 20Hz~500Hz

Capacity range: 1nF ... 10μF at 20kVpeak;  1nF ... 4.25μF at 30kVpeak

PD sensitivity range: 2pC … 100nC (acc. to IEC60270)

Resolution: ±1pC

System noise level: < 20pC at 30kV(peak)

PD localisation:

Measuring range: 0 … 20,000m

Propagation velocity: 5 … 120m/µs

Sampling rate: 200 MHz

Bandwidth: 150kHz ~ 45MHz, automatic adjustment

Precision: 1% of the cable length

Resolution: ± 1pC / ± 0.1m

TD(Tan Delta) test:

Measuring range: 0.1% ~ 10%, automatic adjustment

TDR joint localisation in calibration mode: Integrated

Software: User selectable graphical interface, online “live” PD Mapping; integrated measurement Database, comprehensive viewing; processing, analysing and reporting of measurement data

Temperature:

Operation: -20 °C … 55 °C

Storage: -30 °C … 70 °C

Relative humidity: 93 % at 30 °C (non-condensing)

Weight: 78 kg(net)

Dimensions: Ø 690 x H 720 mm
