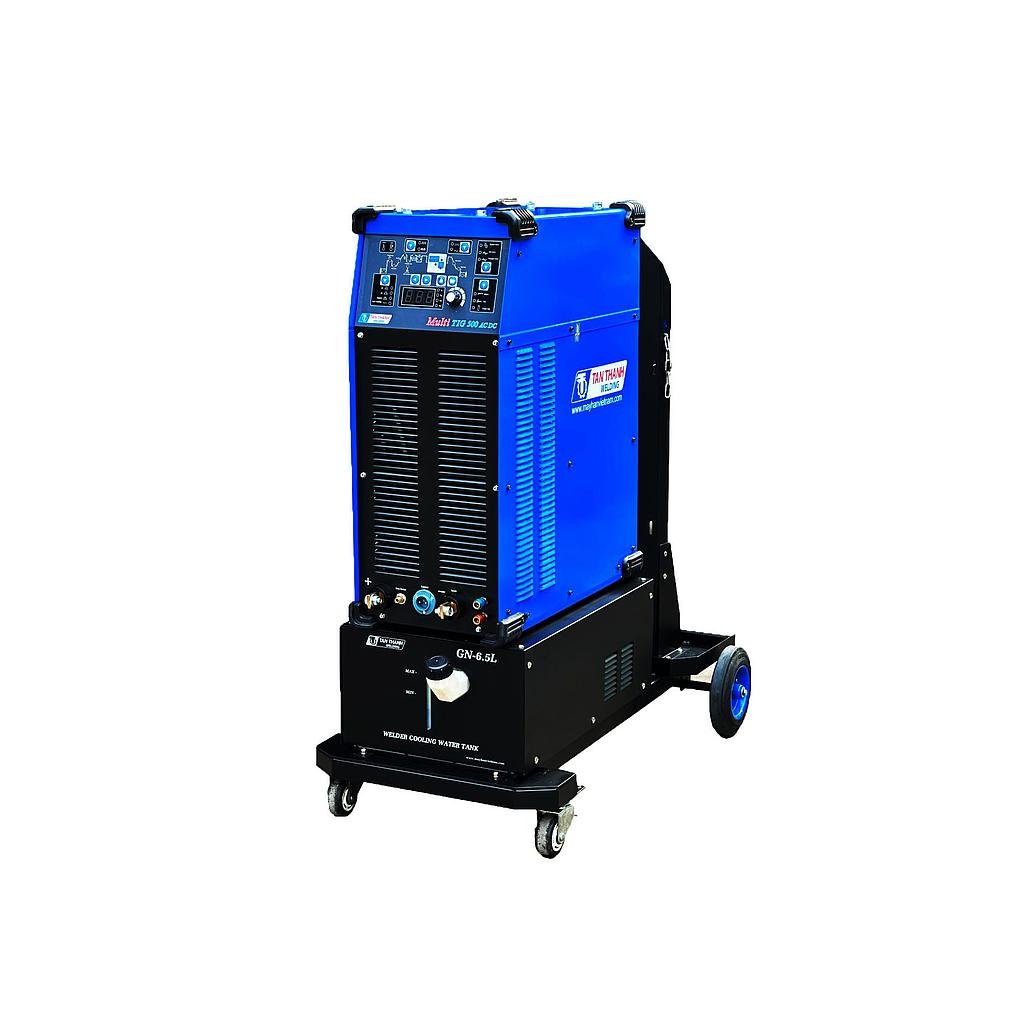

Tân Thành TIG500AC/DC Inverter TIG Welding Machine (500A; 30V)

Rated input voltage (V): 3 Phase - 380

Frequency (Hz).: 50/60

Rated input current (A): 30

No-load voltage (V): 64

Rated welding current (A): 500

Rated welding voltage (V): 30

Working cycle (%): 60

Early air supply time (S): 0.0-10.0

Slow rise time (S): 0.0-10.0

Welding current (TIG) adjustment range: 5-500

Stick welding current adjustment range: 5-500

Pulse frequency (Hz): 0.1-20.0

Delayed gas shutdown time (S): 0.0-60.0

Pulse duty cycle (%) : 10-90

Alternating frequency (Hz): 20-200

Cleaning depth (%) : -50-50

Cleaning width (%): 10-90

Slow time (S): 0.0-10.0

Protection level: IP21S
