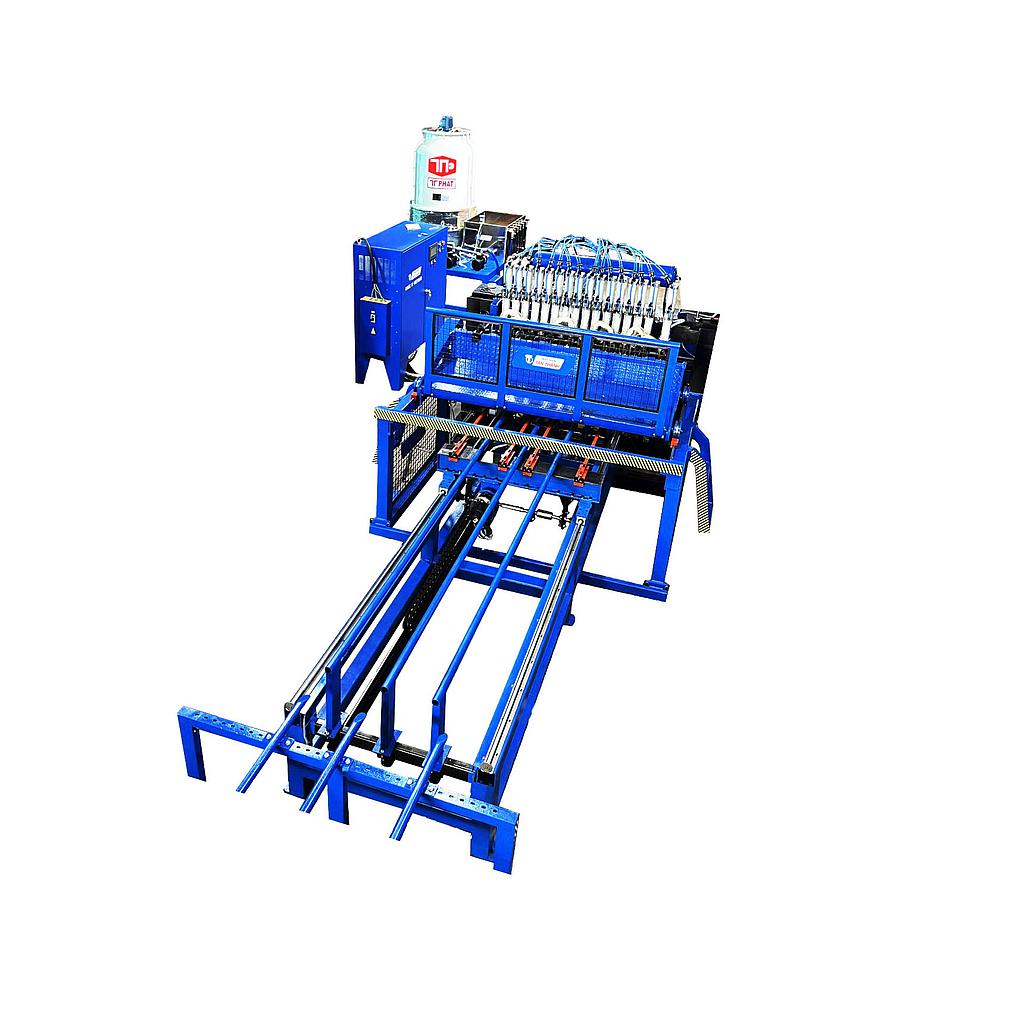

Tân Thành HL1500X12000 Mesh welding machine (1500X12000-800KVA)

Mesh size: 1500mm x 12000mm

Input voltage: 380V

Capacity: 200KVA x 4 = 800KVA

Duty cycle: 100%

Weft wire blank: Ribbed iron Ø: 6mm – 12mm

Warp wire blank: Ribbed iron Ø: 6mm – 16mm

Weft length max: 1500mm

Warp length max: 12000mm

Number of electrode sets: 16 sets

Number of sockets: 16 sockets

Min grid: 100mm x 100mm

Max grid: 300mm x 300mm

Horizontal workpiece feeding: Manual

Horizontal workpiece feeding: Automatic

Vertical feed: Manual

Setting grid spacing: Servo motor

Electrode relocation feature: Yes

Electrode replacement feature: Yes

Control System: PLC

Control screen: Touch

Ben control: Pneumatic
