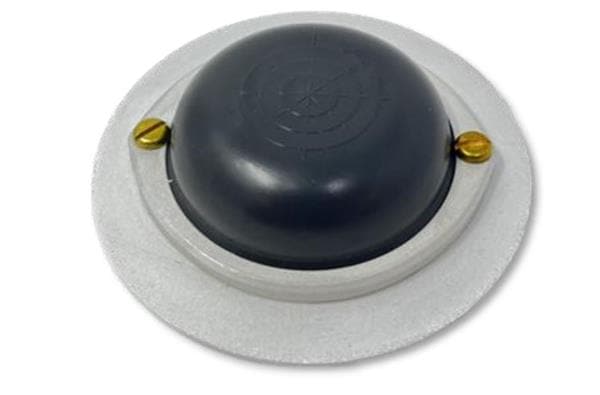

Tallysman 33-SSL889XF-2-19 Dual Band eXtended Filter Housed Dual-BD GNSS Low-Pro Mount ring no groundplane MMCX conn
ManufacturerTallysman(View more products from this manufacturer)
Model33-SSL889XF-2-19
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Gain: 28 dB
VSWR: 1.5:1
Height: 20.3 mm
Frequency: 1.189 GHz to 1.606 GHz
IP Rating: IP67
Polarization: RHCP
Mounting Style: Screw Mount
Electrical Type: Patch
Number of Bands: 2 Band
Maximum Frequency: 1.606 GHz
Minimum Frequency: 1.189 GHz
Termination Style: Connector
Antenna Connector Type: MMCX-Female
Protocol - GPS, GLONASS: BeiDou, Galileo, GLONASS, GPS
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
