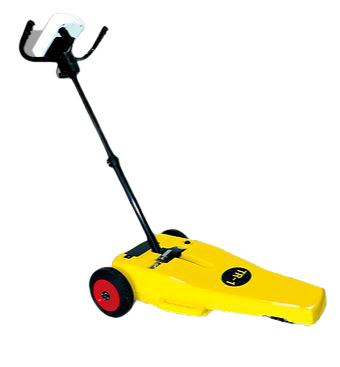

TAKACHIHO TR-1 Ground Penetrating Radar

Application: Fiber Optic, HDPE, MDPE, Asbestos, Brick, Clay, PVC, Balanced HV, Pot ended & Direct current cables can be detected.

- Operating temperature: -10°C ～　+50°C
- Material: Shock-resistant plastic
- Size (stored): 340 mm (H) X 860 mm (L) X 510 mm (W)
- Size (handle deployed): 820 mm ～ 1185 mm (H) X 1085 mm ～ 1290 mm (L) X 510 mm (W)
- Weight: 17 kg
- Waterproof performance: Drip-proof
- Rechargeable battery: Dedicated 16.4 V lithium ion battery
- Standard voltage: 14.4 V
- Battery life: 3 ～ 5 hours
- External power source: AC100 V ～ 220 V
- Charging time: 2 ～ 6 hours
- Seachable depth: 50 mm ～　1500 mm *
- Width measuring: 350 mm
- Data collection speed: Walking speed around 4 km/hour
- Usable frequency: 135 MHz ～ 835 MHz
- Measurement of the object: Metal pipe, Resin pipe, Cable and Optical fiber
- Accuracy of depth estimation:
- Normal measurement : ±100 mm
- High-sensitive output measurement : ±300 mm ～ 500 mm
