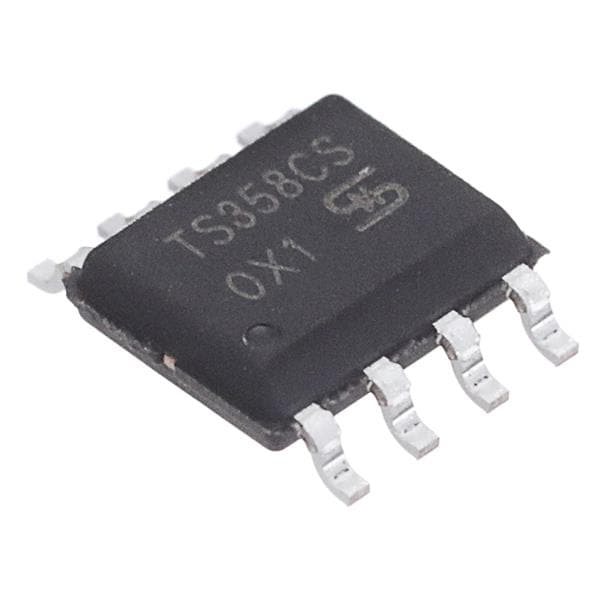

Taiwan Semiconductor TS358CS RLG Operational Amplifiers DUAL OPERATING AMPLIFIER

Shutdown: No Shutdown

Amplifier Type: Single Supply Dual Operational Amplifier

Mounting Style: SMD/SMT

SR - Slew Rate: 400 mV/us

Moisture Sensitive: Yes

Number of Channels: 2 Channel

Supply Voltage - Max: 32 V

Supply Voltage - Min: 3 V

Ib - Input Bias Current: 250 nA

Operating Supply Current: 1.5 mA

Vcm - Common Mode Voltage: 0 V to 28 V

Ios - Input Offset Current: 50 nA

Output Current per Channel: 20 mA, 40 mA

Vos - Input Offset Voltage: 2 mV

GBP - Gain Bandwidth Product: 1 MHz

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: 0 C

CMRR - Common Mode Rejection Ratio: 70 dB
