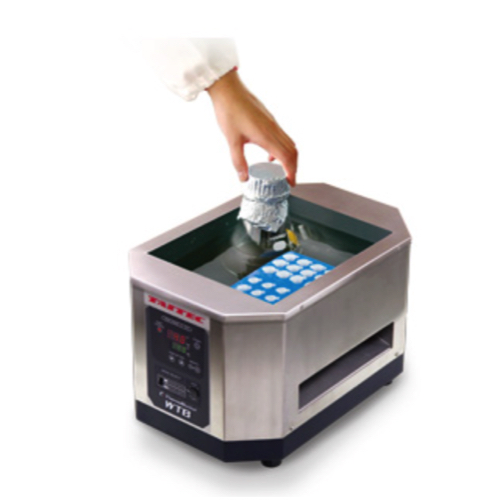

TAITEC WTB Mini Sized Bath (+ 4℃ ~ + 70℃; ±0.1 ~ 0.2℃)

Temperature range: + 4℃ to + 70℃ (*1, 2, 3)

Temp. control accuracy: ±0.1 to 0.2℃

Capacity: 70% water level for Water 3 L(Max. 2 L when WTB-ShakerUnit combined)

Temp. Display: Digital

Cooling/Heating method: Cooling/Heating with Peltier element

Other function: Stirrer bar (used with a constant temp. water bath)

Safe devices/protections: Fuse, Overheat/Overcurre/Overvoltage protection, Sample protection (High/Low temp.), Non-volatile memory error, Sensor error, Automatic tuning error, Alarm setting error

Dimensions (W×D×H)/Weight: 240 × 370 × 216 mm (Lid is not included), Approx. 9 kg

Power supply: AC 100 V/4 A

Applicable bath/blocks: Miracle beads bath, Hetero block, Dual side block, Deep block*2 pcs can be put in each.

(*1)The specifications may not be met the ambient temp. above 30℃ or below 5℃.

(*2)Miracle beads cannot be stably used over 50℃. The　specifications may not be met below 20℃.

(*3)Since the lid of the WTB-ShakerUnit unit cannot be used when this unit is combined with the WTB-ShakerUnit, Max.temp. will be 60℃ and Min. temp. will be 20℃ below Room temperature.
