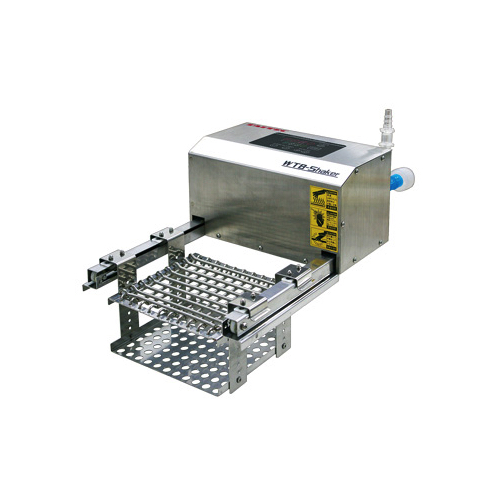

TAITEC WTB-ShakerUnit ShakerUnit For WTB (20 ~ 200r/min)

Applicable to: WTB

Shaking motion/speed: Reciprocal shaking, 20 to 200r/min

Shaking width: 25mm

Capacity:

50 mL Disposable centrifuge tubes × 8 pcs (approx. 30° tilted)

250 mL Erlenmeyer flask/Medium bottle × 1 pc

Platform size (W×D×H): 170 x 150 x 80mm

Maximum Load: Approx. 1 kg (Platform 0.5 kg is included)

Speed display: Digital

Other function: Speed memory × 1pc, Drainage pump, Service outlet (Max. 10 A)× 1 pc

Safe devices/protections: Fuse, Overcurrent/Overvoltage protection, Motor Overload protection, Speed limit error

Dimensions (W x D x H):

Main unit: 245 × 128 × 128 mm (Protrusions are not included)

Combined: 245 × 371 × 344 mm

Weight: Approx. 4.2kg (Combined: Approx. 13.2kg)

Power supply: AC 100 V/1 A (Power consumption: approx. 5 Wh at 200 r/min)(*)

Standard accessories: Spring net shaking platform × 1 pc

(*)Increases according to the amount of service outlet use.

•Applied for only when using WTB as a water bath. The limitation of specs in WTB will occur when combined with this unit so be sure to refer and confirm the below specs and notes in WTB.
