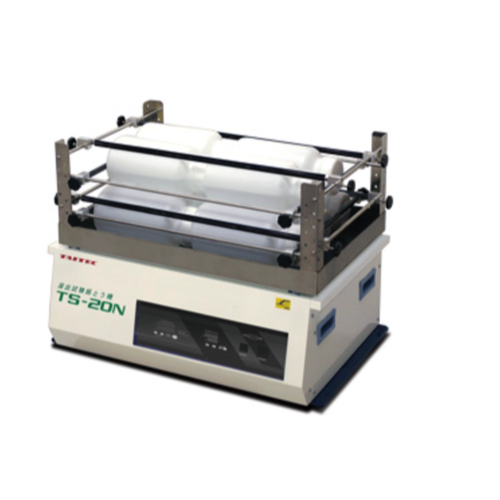

TAITEC TS-20N Elution Testing Shaker (25 ~ 200r/min, 10 ~ 50mm)

Shaking motion: Reciprocal shaking

Shakig speed/width: 25 to 200r/min, 10 to 50mm, Stepless (Default: 45mm)

Capacity: Polyethylene jar: Max. 6pcs for 5L/Max.

14pcs for 2L

Maximum load: Approx. 20kg(Shaking platform and Vessel press bars not included)

Timer: Timer operation function (1 min to 99 h 59 min)

(*When the timer function is not being used, it can count the time.)

ON-END

OFF-ON

OFF-ON-END

Integral timer display 1to 99 h 59 min or after: 100 h to 9999 h

Speed display/Setting: Digital display/Input

Safety devices/functions: Motor protection circuit at overload, Fuse

Dimensions (W x D x H): 820 × 601 × 591 mm (*2)

Weight: Approx. 100kg

Power supply: AC100V-240V/1A (universal power supply)　

Standard accessories: Vessel press bars (long 4/short 4) for TS-20,

screwdriver for Timer × 1 pc

(*1)Please ask us to adjust the shaking width.

(*2)External dimensions have been changed for shipments from the second half of 2013 (for accommodation of polyethylene jars and the change in the capacity of vessels).
