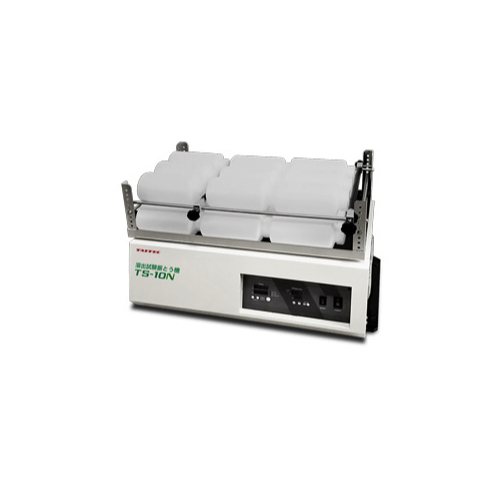

TAITEC TS-10N Strong Shaker (50 ~ 250r/min; 45mm)

Shaking motion: Reciprocal shaking

Shaking speed/Amplitude: 50 to 250 r/min, 45 mm

Capacity: Polyethylene jar: Max. 2 pcs for 5 L/Max. 6 pcs for 2 L (See left figure)

Maximum load: Approx. 10 kg (Shaking platform and Vessel press bars are not included)

Timer

Timer operation function (1min to 99 h 59 min) (*When the timer function is not being used, it can count the time.)

ON-END

OFF-ON

OFF-ON-END

Integral timer display

0 to 99 h 59 min or after: 100 h to 9999 h

Speed display/Setting: Digital display/Input

Safety devices/functions: Motor protection circuit at overload, Fuse

Dimensions (W×D×H): 740 × 439 × 459 mm (*)

Weight Approx.: 70 kg

Power supply: AC100V-240V/1A (universal power supply)

Standard accessories: Vessel press bars (long 3/short 3) for TS-10, Adjustment screwdriver for Timer × 1 pc

(*)External dimensions have been changed for shipments from the second half of 2013 (for accommodation of polyethylene jars and the change in the capacity of vessels).

*Images are for illustrative purposes only.
