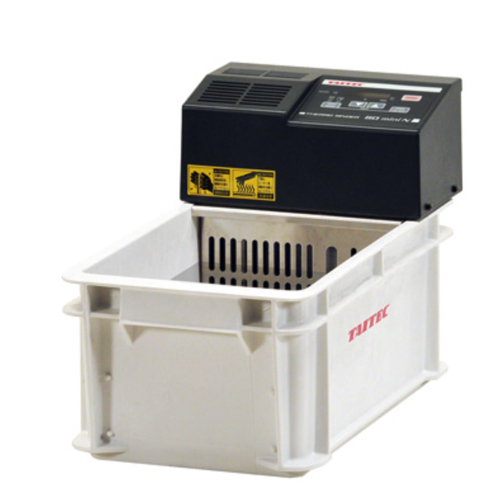

TAITEC SDminiN Unit Water Bath (5℃~+80℃; -20℃ ~ +80℃; ±0.1ºC)
Temperature range (*1): +5℃ above RT to +80℃ (*2)
Settable temp. range (*3): -20℃ to +80℃
Temp. control accuracy (*4): ±0.1℃
Stirring method in Bath: Jet flow
Temperature display: Digital (Changeable Preset/Current value)
Timer: Buzzer notification for Preset time Operation OFF Each Setting range: 1 min to 99 h 59 min
Other functions: Buzzer notification when Preset temp. is reached, Automatic tuning
Minimum Water level: 45 mm from the bottom of the bath
Heater: 500 W (Time proportional output variable)
Safe devices/protections: Circuit protector, Fuse, Dry-heating protection with float,Heater protection cover, Sensor error, Short circuit, High/Low temp. sample protection, Water level alarm, Non-volatile memory error, Automatic tuning error, Alarm setting error
Power failure: Switchable Automatic/Manual recovery
Dimensions inside Bath(W×D×H): 180 × 237 × 155 mm (Occupancy Dim.: 190 × 83 × 147 mm)
Main unit dimensions(W×D×H): 220 × 127 × 235 mm(When Bath C-type is used: 220 × 398 × 262 mm)
Weight: Approx. 3 kg
Power supply/consumption:
AC100V/5.5A (Need a step-down transformer)
75 Wh at 37℃ (46 Wh when Hood used) (*5)
Standard accessories: Plastic Water bath C-type × 1 pc (*2)
Catalog
(*2)As the Max. Heat-resistant temperature of bath C-type is up to 70℃, you can use the optional stainless steel insulated bath F-type for above 70℃.
(*3)Not equipped with a cooling function. Can be used together with our Chiller/Coolnit, Immersion cooler, etc. at below RT (25℃).
(*4)The value under the conditions of RT (25℃), AC 100 V/50 Hz,
(*5)The reference value when the Plastic Water bath C-type and optional Heat-resistant Plastic Hood PF-SDM at each preset temp. used under the condition of *4.
