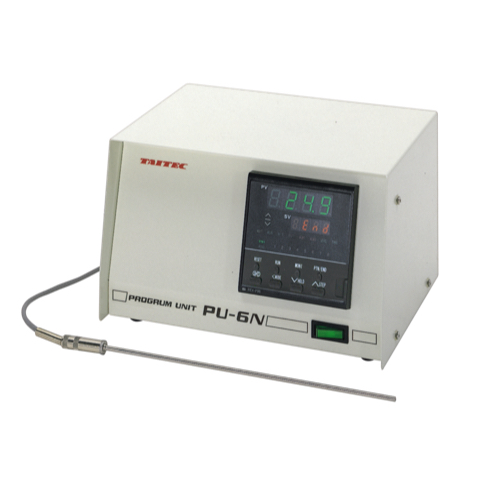

TAITEC PU-6N Program Setting Device

Number of Storage pattern (Temperature program): 16

Number of Storage segment(Temperature program): 16 segments/patterns

Max. Number of segment (Temperature program): 256

Number of Pattern connection (Temperature program): 16

Number of Repeat (Temperature program): 1 to 999 or Infinite

Preset time range (Temperature program): 0 to 199 h 59 min

Functions(Temperature program): Temperature program: Weight zone, Holding, Step Pattern link (linkage), Temperature correction (offset)

Number of Storage pattern (Time signal): 1

Number of Storage (Time signal): ON-OFF: Four times(4) per each/Pattern

Preset time range (Time signal): 0 to 199 h 59 min

Output (Time signal): AC 100 V/Max. 15 A(Resistance load)

Dimensions (W×D×H)/weight: 223 × 181 × 159 mm, 2.5 kg

Standard accessories: Pt Temperature Sensor × 1 pc, Connecting cable × 1 pc

Power supply: AC100V/1A/Max.15A (Need a step-down transformer)
