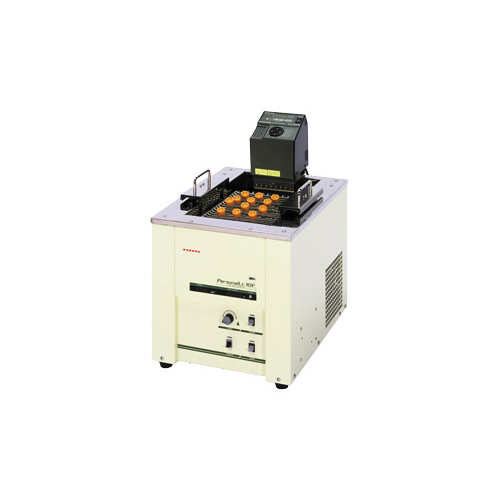

TAITEC Personal Lt-10F SX Set Bench-Top Shaking Water Bath (-10℃ ~ +50℃; ±0.1℃)

Temperature range (*1)(Thermominder): -10℃ to +50℃

Settable temp. range (*2)(Thermominder): -20℃ to +105℃ (5℃ to 105℃ in SX-10N used singly)

Temp. control accuracy (*3)(Thermominder): ±0.1℃ to (±0.05℃ in SX-10N used singly)

Temperature memory(Thermominder): 1

Timer (*4)(Thermominder): Buzzer notification for Preset time, Operation OFF, Temperature transition

Other functions(Thermominder): Buzzer notification when preset temp. is reached, Automatic tuning, Safety device output (Alarm out cable AOC-2 required to output.)

Heater(Thermominder): 1000 W (Time proportional output variable)

Safe devices/protections(Thermominder): Circuit protector, Fuse, Dry-heating protection with float, Heater protection cover, Sensor error, Short circuit, High/Low temp. Sample protection, Water level alarm, Non-volatile memory error, Automatic tuning error, Alarm setting error, Switchable Automatic/Manual recovery

Power supply(Thermominder): AC 100 V/10.5 A

Standard accessories(Thermominder): Microtube Floater × 1 pc, Plastic Water bath C-type × 1 pc (*5)

Shaking method(Personal): Reciprocal shaking

Shaking speed/width(Personal): 20 to 160 r/min (Digital display), 10 to 40 mm (Stepless variable,Default 30 mm)

Platform dimensions(Personal): 220 × 310 mm

Other functions(Personal): Elapsed time indicator (0.1 to 999.9 h, with Automatic reset) × 1 , Service outlet for Thermominder ×1

Compressor(Personal): 75 W

Bath inside dim.(W×D×H)/volume(Personal): 235 × 430 × 140 mm, Approx. 11 L (80% Water level, Approx. 10 L: Combined with Thermominder or Platform) (*6)

In the Personal Lt-10F SX, the water bath cannot be detached and equipped with a drain hole (unit rear).In the Personal H-10 SH Set, the water bath can be detached. and W/D drain.

Power supply(Personal): AC100V/4.5A /15A with SX-10N(Need a step-down transformer)

Standard accessories(Personal): Dedicated Spring net Shaking platform × 1 pc

Dimensions (W×D×H)/weight: 381 × 545 × 559 mm, Approx. 30 kg

Catalog

(*1)Max. temp. may not be reached when the optional Hood is not used or depending on the usage conditions.

(*2)Use antifreeze when below 7℃ and heat medium for high temp. when above 70℃. See the right page for our specified heat medium.

(*3)The value under the conditions of RT (25℃), AC 100 V/50 Hz, 80% Water level, Preset temp. 37℃, and No heat load.

(*4)Each setting range is 1 min to 99 h 59 min.

(*5)This also serves as a packing box whereas it is not used together with the Personal-11 Set.

(*6)The proper volume is 7 L to 9 L when shaking with the capacity (max. number) such as Centrifuge tubes and max. 500 mL of Erlenmeyer flasks at 120 to 160 r/min
