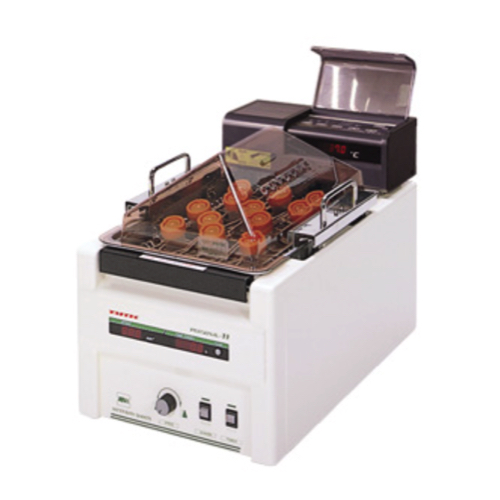

TAITEC Personal-11 SDN Set Bench-Top Shaking Water Bath (RT+5℃ ~ +70℃; -20℃ - +100℃)

Product contents:

Thermoregulation part: SDN

Shaker part: Personal-11

Dimensions: 300 x 495 x 336Hmm

Weight: Approx. 19kg

Power Supply: AC100V/0.5A/Max.9A (Need a step-down transformer)

Standard Accessory: Spring net shaking rack for personal-11 ×1, clamp spacer×1

Applicable Container / Number:

∅11mm test tube (hold vertically) x 187

50ml centrifuge tube (tilt about 30º) x 12

100ml Erlenmeyer flask x 8

200ml Erlenmeyer flask x 6

250ml/300ml Erlenmeyer flask x 5

500ml Erlenmeyer flask x 3

Details of Set Products

Model: SDN

Temperature Range: RT+5ºC - +70 ºC

Temperature setting: -20℃ - +100℃ (*1)

Temp. Control Accuracy: ±0.1℃ - 0.3 ºC

Minimum temperature setting unit: 0.1ºC (setting and display)

Flow: Jet blast

Temperature Display: Digital display

Setting temperature (top panel) and inside chamber temperature (side panel)

Memory: three memory

Heater: 800W

Weight: Approx. 3kg (when using thermal insulation tray B: Approx. 6kg)

Safety device / function: Circuit protector (15A), fuse (2A), float type prohibition of boiling while empty

Misalignment high and low temperature error , lowing water, sensor error, auto tuning error, non-volatile storage error

Dimensions: 280 x 109 x 215Hmm (when using thermal insulation tray B: 280 x 475 x 240Hmm)

Power Supply: AC100V/8.5A (Need a step-down transformer)

Catalog

(*1) Cooling machine such as "Cool pipe" is required for set below environmental temperature. Antifreezing solution is required for set below +7℃.

(*2) This production is specialized for thermal insulation tray B (inner Dimensions 235 x 430 x 140Hmm). Other water bath cannot be used.
