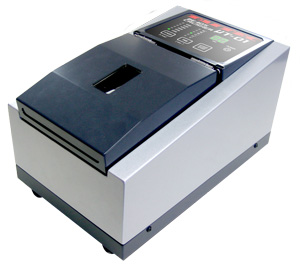

TAITEC μT-01 Bead Beater Homogenizer (1.5/2.0 mL; 2500 to 4600 r/min)

Crushing method: Crushing beads with pendular swing method

Shaking speed: 2500 to 4600 r/min (6-step setting) (*1)

Capacity: 1.5/2.0 mL Screw cap microtube(Outer diameter below 11 mm of the body of Microtubes can be used. )(*2)

Applicable beads: Non-metal beads, Stainless steel beads, Metal crusher, Zirconia Crusher (*1) (*3)

Ambient temperature: 5℃ to 35℃ (No condensation) (*4)

Timer: 6-step setting (5, 10, 15, 30, 45, 60 seconds) (*1)

Safety devices/functions: Braking when cover is open during operation, Motor stopping when cover is open, Motor overcurrent protection

Dimensions (W×D×H)/Weight: 175 × 280 × 160 mm, Approx. 5 kg

Power supply: AC100V-240V/0.5A (universal power supply)

(*1)Set below 4000 r/min and 15 seconds when using Metal crusher.

(*2)Refer Recommended Microtubes on page 102.

(*3)Stainless steel beads and Metal/Zirconia crusher are available as an option. Marketed Glass and Zirconia beads can be used.

(*4)An actual shaking speed may be slower than that of specs due to load.
