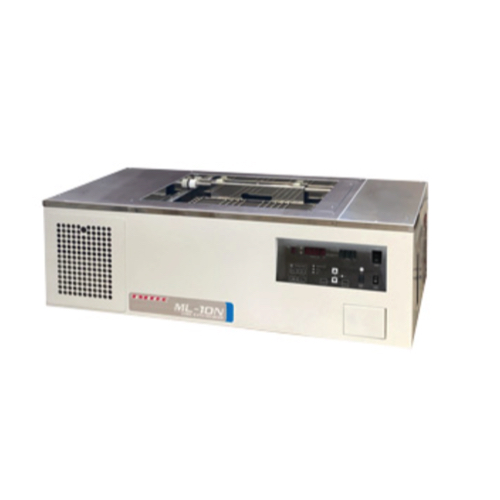

TAITEC ML-10N Shaking Water Bath (0°C ~ +50°C; 30~ 160r/min)

Operating Environment Temperature Range(*1,2): +5℃ to +35℃

Operating temperature range (*2,3): 0°C to +50°C

Temperature control accuracy(*4): 〜±0.2℃

Shaking method: Reciprocal shaking

Shaking speed: 30 to 160r/min

Shaking width: 10 to 40mm (Stepless variable)

Temperature/speed setting and display: Digital setting, digital display

Heating/cooling method: Heating: heater (800W), cooling: refrigerator(125W, refrigerant: R-134a), Refrigerator OFF switch available

Stirring method in Bath: Jet flow

Program function: 1 program, 9 steps, temperature/speed/time can be set for each step (up to 99h59min), temperature gradient function available

Safety devices/Safety functions: Earth leakage/overcurrent breaker, Fuse, High temperature safety device, Dry-heating protection with float, Temperature sensor abnormality diagnosis, Motor abnormality, Speed limiter, Non- volatile memory abnormality, Output abnormality Overload relay (ML-10N only), Heater cover, Sample protection safety device

Shaking platform dimensions(*5): 400×300×125Hmm

Water bath internal dimensions/capacity: 530×365×225Hmm, approx. 25L(when water level is 100mm from the bottom plate of the shaking platform)

External dimensions/weight: 983×486×338Hmm, approx. 62kg

Power supply: AC100V・15A

Standard accessories: Dedicated spring net shaking platform x 1 pc, Drain hole filter x 1 pc

Flyer

(*1)No condensation.

(*2)When using the ML-10N at an ambient temperature of 30°C or higher, in an installation location where heat exhaust is prevented, or when the supply voltage is low, the cooling capacity may decrease, and the set temperature may not be reached.

(*3)When using below +7°C, use antifreeze, and when using above +70°C, use a high-temperature heat medium. Please check our website for information on each heat medium specified by our company.

(*4)The temperature accuracy is based on the case where clean water is used and the water bath is sufficiently stirred. Temperature accuracy varies depending on various conditions such as ambient temperature, set temperature, how the vessel is installed, and water volume. The specifications of this unit are performance values based on the measurement method specified by our company. If you would like validation of temperature accuracy, etc., please contact us.

(*5)The inner dimensions of the shaking table are 370 x 270 mm. The height is measured from the bottom of the shaking platform to the top of the upper spring net frame. The height of the spring net can be changed in 15 mm increments.

●External output (temperature/speed/safety device activation signal output) is also available by special order. Please contact us for details.
