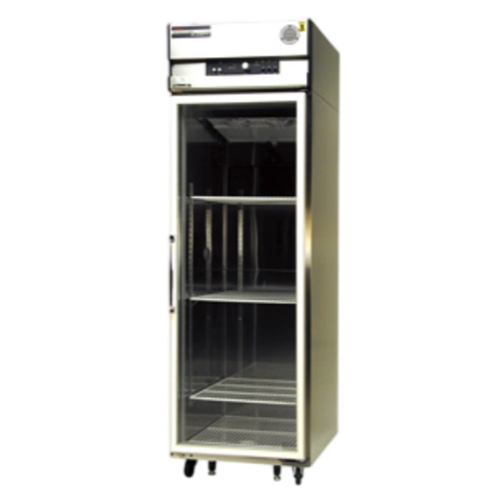

TAITEC M-210FD Constant Temperature Chambers (0℃ ~ 45℃; 2.0°C)

Temperature range: 0℃ to 45℃

Temp. control accuracy: Up to 2.0°C (*1, 2, 3)

Chamber volume: Approx. 392L

Heater: 200W

Compressor: 200W (Automatic defrosting function, ON/OFF can be arbitrary turned)

Outlet inside the chamber/Connecting hole: Outlet: 2-Socket × 1 (Drip-proof-type, 5 A in total)

Connecting hole: Left side (φ36 mm)

Circulating method inside chamber: Circulating by fan motors

Num. of Shelf/Allowable weight: 3 levels/50kg each (Equal weight)

Interior/Exterior material: Stainless steel (except for some part)

Dimensions inside the chamber: 494(W) x 650(D) x 1428(H)mm

Int. Dimension: 600(W) x 800(D) x 1905(H)mm

Weight: Approx. 103kg

Power supply: AC100V/7A /Max.12A (Need a step-down transformer)(*4)

Standard accessories/Others: Shelf × 3 pcs, Pallet × 1 pc, Drip tray × 1 pc, Drainage trap on the bottom

(*1)The value under ambient temperature 25℃. Useable ambient temperature is 5°C to 30°C.

(*2)If the set temperature in the chamber is higher than 5℃ above the room temperature, turn the REF. switch OFF. If the set temperature in the chamber is 5℃ or lower than the room temperature, turn the HEAT switch OFF.

(*3)Temperature change immediately after operating the defrosting function is not taken into account.

(*4)When the outlet inside the chamber is used, the power will increase according to the power supply capacity of the device used.
