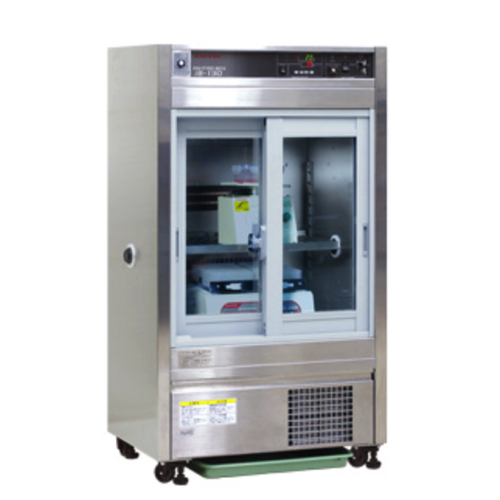

TAITEC iB-130 Constant Temperature Chambers (3℃ ~ 45℃; ±1.0℃ ~ 2.0℃)

Temperature range (*1): 3℃ to 45℃

Temp. control accuracy (*2): ±1.0℃ to 2.0℃

Chamber volume: Approx. 90L

Heater/Compressor: 500W/80W

Outlet inside chamber: 1-Socket × 1 (3 A)

Connecting hole: On both sides (Each φ36 mm) the Lid is included.

Circulating method inside chamber: Forced circulating-type (Manually adjustable on the operation part (*3))

Num. of Shelf/Allowable weight: 1 level/35kg (Equal weight)

Interior/Exterior material: Stainless steel (SUS304) except for some part

Safe devices/protections: Overload relay, Temp. sensor error diagnosis, Temp. range over alarm, Memory error alarm, and Compressor High temp. cut circuit

Dimensions inside chamber: 552(W) x 370(D) x 440(H)mm

Int. Dimension: 622(W) x 570(D) x 1028(H)mm

Weight: Approx. 60kg

Power supply (*4): AC100V/8A /Max.11A (Need a step-down transformer)

Standard accessories: Shelf × 1 pc, Pallet × 1 pc, Drip tray × 1 pc, Door key × 1 pc

Catalog

(*1)Useable ambient temperature 5℃ to 30℃. The accuracy does not include the fluctuations when switching the solenoid valve is not included.

(*2)Strengthen it when there is a lot of condensation and Weaken it when the sample is dry.

(*3)When the outlet inside the chamber is used, the power will increase according to the power supply capacity of the device used.

•1 set of Shaker NR-1/2/3 can be put on the bottom of the chamber in iB-230. There is a limitation on the shaking speed for use. Described for details in the manual of these products. Any devices that do not generate large vibrations such as a Rotator or Seesaw shaker can be used on the shelf (Each device is verified for operating inside the chamber by TAITEC).
