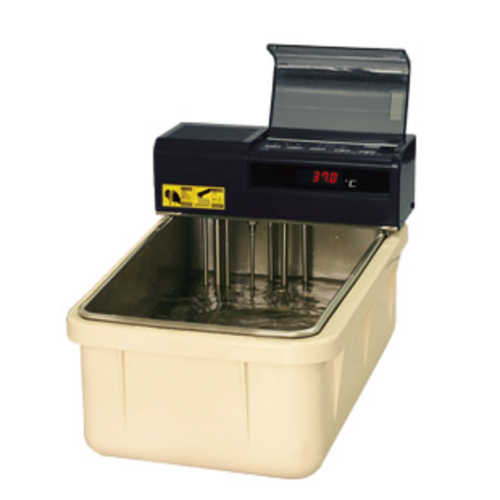

TAITEC EXN-B Unit Water Bath (5℃~+70℃; -20℃ ~ +100℃; ±0.02ºC - 0.08 ºC)

Temperature Range: RT+5ºC - +70 ºC

Temperature setting: -20℃ - +100℃ (*1)

Temp. Control Accuracy: ±0.02ºC - 0.08 ºC

Minimum temperature setting unit: 0.1ºC (setting and display)

Flow: Jet blast

Flow control : 4 step (digital display)

Temperature Display: Digital display

Setting temperature (top panel) and inside chamber temperature (side panel)

Timer:

ON-OFF: 1min - 99h59min

Buzzer : 1min - 99h59min

OFF-ON: 1min - 99h59min

Memory: three memory

Simple_Programming Function: three steps

Heater: 800W

Weight: Approx. 3kg (when using thermal insulation tray B: Approx. 6kg)

Safety device / function:

Circuit protector (15A), fuse (2A), float type prohibition of boiling while empty

Warning buzzer, misalignment high and low temperature error , lowing water, sensor error, auto tuning error, non-volatile storage error

Dimensions: 280 x 109 x 215Hmm (when using Thermal insulation bath B-type: 280 x 475 x 240Hmm)

Power Supply: AC100V/8.5A (Need a step-down transformer)

Standard Accessory: Thermal insulation bath B-type ×1 (*2)

Catalog

(*1) Cooling machine such as "Cool pipe" is required for set below environmental temperature. Antifreezing solution is required for set below +7℃.

(*2) This production is specialized for Thermal insulation bath B-type (inner Dimensions 235 x 430 x 140Hmm). Other water bath cannot be used.
