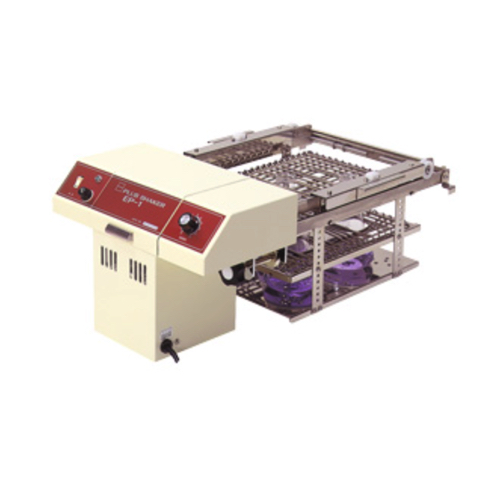

TAITEC EP-1 Combination Type Shaking Water Bath (20~ 160 r/min, 0 ~ 30 mm)

Shaking method: Reciprocal shaking

Shaking speed/width: 20 to 160 r/min, 0 to 30 mm (Stepless variable)

Platform dimensions: 275 × 315 mm

Applicable Water tank: Plastic Water bath A/B-type Stainless steel Heat Thermal insulation Water bath E type

Dimensions inside Bath(W×D×H): 280 × 385 × 140 mm

Clampable thickness: Below 50 mm

Dimensions (W×D×H)/weight: 330 × 575 × 250 mm, Approx. 14 kg

Power supply: AC100V/1A (Need a step-down transformer)

●Use this unit below 80℃ (Up to 70℃ when used together with the Plastic Water bath A/B-type)
