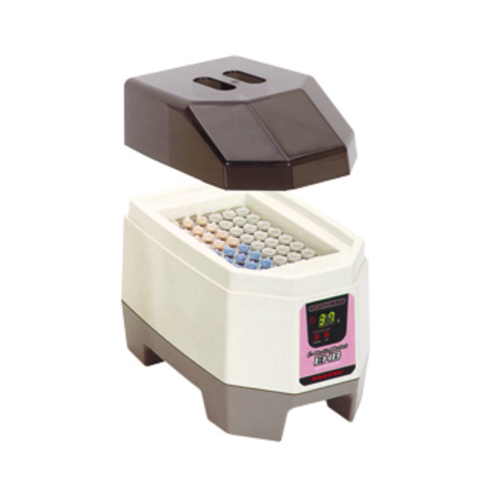

TAITEC EHB Mini Sized Bath (+ 30℃ ~ + 70℃; ±1℃)

Temperature range: Around + 30℃ to + 70℃ (*1,2,3)

Temp. control accuracy: Below ±1℃

Standard Bath: Hetero block (BAL-8148)

Temp. Display: Digital

Cooling/Heating method: Heater

Safe devices/protections: Fuse, Overheat/Overcurrent/Overvoltage protection

Dimensions (W×D×H): 170 × 240 × 220 mm

Weight: Main unit: Approx. 2.2 kg + Hetero block Approx. 1.2 kg

Power supply: AC100V-240V / 1A (universal power supply)

Applicable Bath/Block Miracle beads bath, Hetero block, Dual side block

(*1)The specifications may not be met the ambient temp. above 30℃ or below 5℃.

(*2)Miracle beads cannot be stably used over 50℃. The specifications may not be met below 20℃.

(*3)When used as a water bath (eb-ShakerUnit used with) in EHB, the upper limit temp. is up to 50℃ and ETB is up to 55℃. (ambient temp. 5℃ to 30℃)
