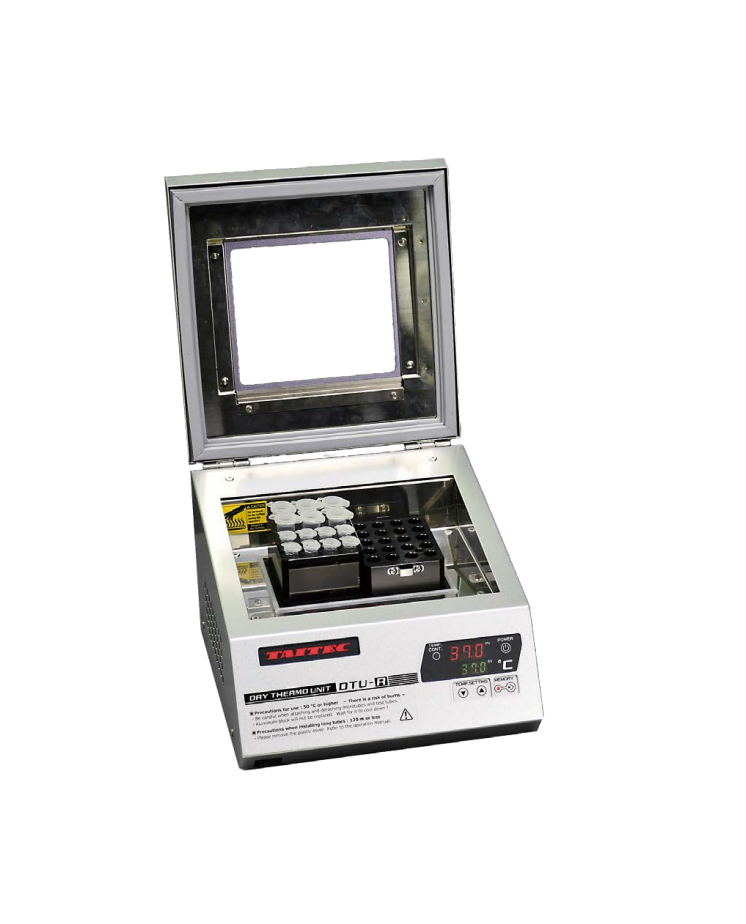

TAITEC DTU-R Aluminum Block Bath (RT +5°C ~ +105°C; ±0.1℃ ~ ±0.2℃)

Ambient temperature: +5 to +30°C (*1)

Temperature range: RT +5°C ~ +105°C (*2)

Temp. control accuracy: ±0.1℃ to ±0.2℃ (*3)

Capacity: Half block × 2 pcs or Full block × 1 pc

Temp. display: Digital

Heating/Cooling method: Heater, Heat dissipation by fan

Safe devices: Fuse, Overvoltage/Overcurrent/Overheat protection

Safe protections: Non-volatile memory error, sensor error, sample protection (high temperature)

Dimensions (W×D×H)/Weight: 244 × 285 × 180 mm,Approx. 6 kg

Power supply: AC 100 to 240 V

Standard accessories: Power cord, Hook handle, Fuse (built-in fuse holder)

(*1)The specifications may not be met when the hood is open, ambient above 30°C, or in low-temperature environment.

(*2) The maximum operating temperature is 80°C above Room temperature.

(*3) The lowest operating temperature is 30°C below Room temperature when cooling and the maximum is 80°C above Room temperature.

(*4)Values are for an operating temperature around +25°C.
