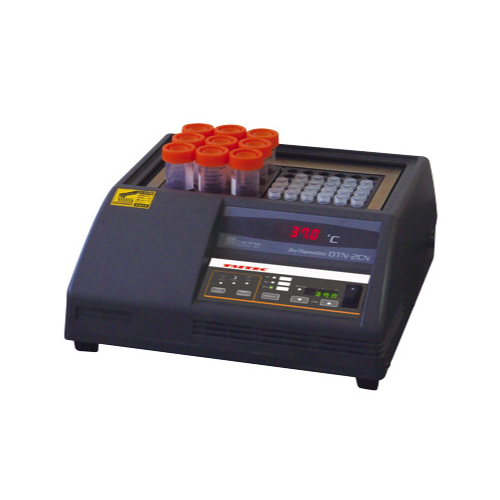

TAITEC DTU-2CN Aluminum Block Bath (+ 5℃~+ 200℃; ±0.1℃)

Temperature range: + 5℃ above Room temperature to + 200℃

Temp. control accuracy: Below ±0.1℃ (Set per 0.1℃)

Capacity: 2BN/2CN: Deep block × 2 pcs

Other functions: Automatic tuning, ON/OFF timer (1 min to 99 h 59 min), Setting time notification timer, Setting temp. reaching notification buzzer, Temp. memory × 3, temp. Output (DC 0 V to 1 V: 1CN/2CN) (*)

Temp. Display: Digital (Preset/Current value)

Heater: 250 W

Safe devices/ protections: Fuse, Sensor open/short circuit alarm, High/Low temp absolute value alarm, Memory error, Automatic tuning error

Dimensions (W×D×H)/Weight: 2BN/2CN: 318 × 318 × 130 mm, Approx. 6 kg

Power supply: AC100V/2.8A (Need a step-down transformer)

Standard accessories: Block extraction hook handle × 1 pc (Blocks are sold separately)

(*)The current temperature can be outputted ("Alarm Out Cable AOC-2" is required for use).
