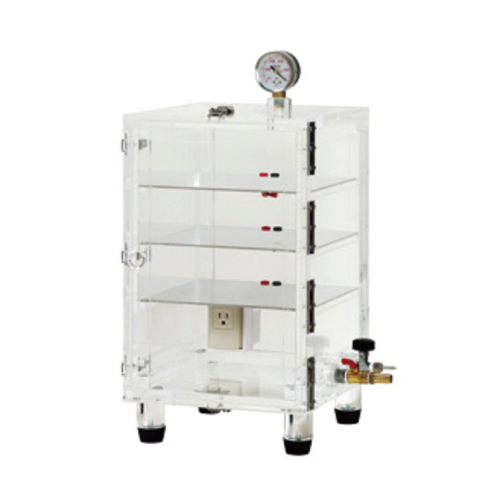

TAITEC DC-280 Drying Chamber (258 x 250 mm)

Number of Shelves/Size: Three sheleves (aluminum made), 258 x 250 mm

Heater: on the back of each shelf, can be turned ON/OFF by each shelf　Shelf surface approx. 30℃ when ON turned (under

reduced pressure)

Vacuum gauge: Bourdon tube Vacuum gauge

Suction nozzle outer dia.: φ14mm

Vacuum release: Manually operated, by outer dia. φ9 mm Needle valve (gas purge combined use)

Outlet inside chamber: Max. AC100V/3A

Dimensions (W×D×H): 430 × 400 × 615 mm

Weight: Approx. 21kg

Power supply: AC100V/3A /Max.7A(Need a step-down transformer)

Standard accessories: Acrylic shelf without heater × 3 pcs

Catalog

•Use a vacuum pump with displacement 50 to 100 L/min. It may be distorted or broken if using a pump thatis larger than 100 L/min.
