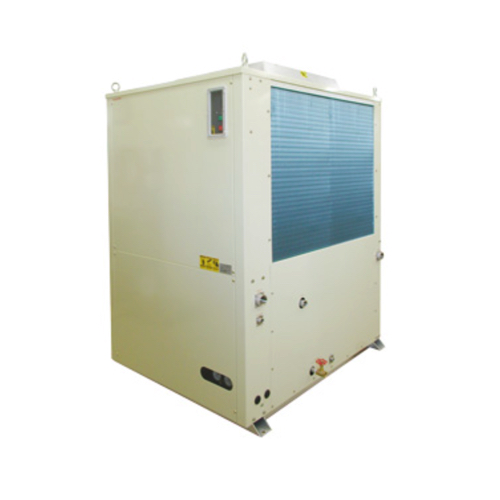

TAITEC CH-2200ASO Large Chiller (+5℃ ~ +25℃; 2.2kW, R407C)

Temperature range: +5℃ to +25℃

Control accuracy (*1): ±2.0 to 3.0℃, Compressor On-Off control

Cooling capacity [kW] (50/60kHz) (*2): Circulation temp +10℃: 5.2/6.4

Circulation temp+20℃: 5.8/7.3

Compressor output, Refrigerant: 2.2kW, R407C

Pumping capacity (50/60kHz) (*3):

Max.discharge pressure [MPa]: 0.22

Flow rate [L/min]: 60

Motor output [kW]: 0.4

Safety device/function: Short/Over current breaker, Overload protector, High and Low temperature, Refrigerant high and low pressure, Overheat protector for Compressor, Low water cut off, Phase-reversal relay, Overheat protector for Compressor , Warning indicator lamp

Water bath capacity (at 80% water level): 61L

Connecting pipe diameter (Circulating fluid in/out): Rp1

Dimensions: 530×1090×1310 mm

Weight: 240kg

Power Supply (three phase AC200V, 50/60Hz): 30A

Operation current (50/60Hz): 10/12A

Standard Accessory: Remote control panel

Catalog

(*1)Performance may not be maintained due to environmental temperature, heat load, circulation pipe distance, etc.

(*2)Capacity when the ambient temperature at below +30℃.

(*3)Capacity when using tap water. Flow rate when the discharge pressure at 0.1 MPa.

•The cooling capacity may not be maintained if the unit is placed in direct sunlight and hindrance of exhausting.

•Standard products cannot use pure water as circulating fluid.

•Please ask us when mixing chemicals for water treatment to circulating fluid.

•The fee for Delivery, Installing, Piping work, and Wiring work are quoted separately.
