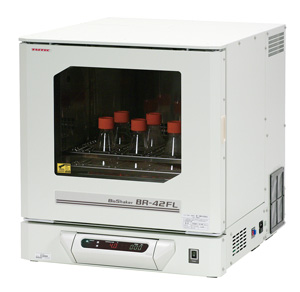

TAITEC BR-42FL Medium Sized Constant Temperature Incubator Shaker (+4ºC ~ +70ºC; ±0.3 ~ ±1.0℃)

Temperature range: +4ºC to +70ºC (For low to medium temperatures)

Shaking motion: Orbital

Temp. control accuracy (*1): ±0.3 to ±1.0℃

Speed range: 20 to 300 r/min (200 r/min at the upper of stacked units)

Shaking width: 25 mm

Capacity:

Universal shaking platform MT-4430: Erlenmeyer flask 500 mL × 8

Universal shaking platform MT-4030: Erlenmeyer flask 5 L × 1 *BR-40UL: 2 L × 2 (*2)

Door type: Single swing door (Leftward open, Can be changed to rightward open) (*3)

Maximum load: approx. 7 kg (Platform and Vessel holder included)

Ambient temp. range: +5℃ to +35℃

Heating method: Heater 800 W

Cooling method: Compressor 140 W

Program functions: 1 program, 9 segments: Temp., Shaking speed and time/per segment (Setting range: 00 h 00 min to 99 h 59 min), Temp. gradient function (*4)

Safety devices/functions: Leakage/Overcurrent breaker, Fuse, High temp, Alarm of abnormal sample temp. (Set as desired),Detecting the door opening and closing, Self-diagnosis function for sensor error, Motor current limiter, Compressor overheating cut-off circuit (BR-40UL and FL)

Dimensions (W × D × H): 600 × 732 × 643 mm

Weight: Approx. 98 kg

Power supply: AC100V/12A (Need a step-down transformer)

(*1)The temp. of defrost function that just starting is not included. Also, the specifications may not be met outside of the ambient temperature range.

(*2)Maximum inside height are 331 mm (40UL) and 350 mm (41/42/43).

(*3)Distributor can make necessary changes.

(*4)The transfer time of temperature can be set up. (Within the capabilities, Cannot be set for Step 1)

•Temp. range and Temp. stability may not be able to meet the specs when it is frozen by continuous operation. Required to defrost it regularly.
