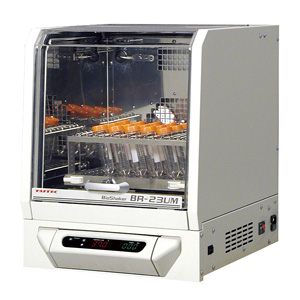

TAITEC BR-23UM Small Sized Constant Temperature Incubator Shaker (70℃; ±0.2 ~ ±0.4℃)

Temperature Range: 5℃ above RT to 70℃

Shaking motion: Reciprocal/Orbital

Temp. control accuracy (*1): ±0.2 to ±0.4℃

Speed range: 20 to 300 r/min (200 r/min at the upper of stacked units),

Shaking width: 25mm（≒1inch）

Platform size: 290 × 250 mm (Max. inside height: FP/FH = 270 mm, UM = 315 mm)

Capacity: Erlenmeyer flask 500 mL × 4, 2 L × 1

Door Style: Swing lift-up door

Maximum load: Approx. 3.5 kg (Platform and Vessel holder included)

Ambient temp. range: +5℃ to +35℃

Heating method: Heater (350 W)

Display (Temp. and speed): Digital display

Program functions: 1 program, 9 segments: Temp., Shaking speed and time/per segment (Setting range: 00 h 00 min to 99 h 59 min), Temp. gradient function (*2)

Safety devices/functions: Leakage/Overcurrent breaker, Fuse, Alarm of abnormal sample temp. (Set as desired), Detecting the door opening and closing, Self-diagnosis function for sensor error, Motor current limiter, Overcurrent protection of Peltier (FP)

Dimensions: 422 × 550 × 540H mm

Weight: Approx. 43 kg

Power supply (*3): AC100V/5A (Need a step-down transformer)

Standard accessories: Drain nozzle ×1pc, Drain hose ×1pc

(*1)The value at the ambient temperature is 25℃. Also, the specifications may not be met outside of the ambient temperature range.

(*2)The transfer time of temperature can be set up.

(*3)Voltage variation rate is ±5% for AC 100 V.
