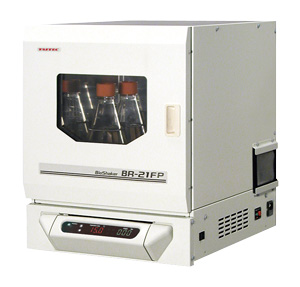

TAITEC BR-21FP Small Sized Constant Temperature Incubator Shaker (+15ºC ~ +60ºC; ±0.2ºC)

Temperature Range: +15ºC to +60ºC (Low - middle temperature）(*1)

Shaking motion: Reciprocal

Temp. control accuracy (*1): ±0.2ºC (*1)

Speed range: 20 to 300 r/min (200 r/min at the upper of stacked units)

Shaking width: 25mm (≒1inch）

Platform size: 290 × 250 mm (Max. inside height: FP/FH = 270 mm, UM = 315 mm)

Capacity: Erlenmeyer flask 500 mL × 4, 2 L × 1

Door Style: Front door (left open)

Maximum load: Approx. 3.5 kg (Platform and Vessel holder included)

Ambient temp. range: +5℃ to +35℃

Heating method/Cooling method: Peltier element (70 W × 4)

Display (Temp. and speed): Digital display

Program functions: 1 program, 9 segments: Temp., Shaking speed and time/per segment (Setting range: 00 h 00 min to 99 h 59 min), Temp. gradient function (*2)

Safety devices/functions: Leakage/Overcurrent breaker, Fuse, Alarm of abnormal sample temp. (Set as desired), Detecting the door opening and closing, Self-diagnosis function for sensor error, Motor current limiter, Overcurrent protection of Peltier (FP)

Dimensions: 437 x 585 x 545Hmm

Weight: approx. 48kg

Power supply (*3): AC100V/5A (Need a step-down transformer)

Standard accessories: Drain nozzle ×1pc, Drain hose ×1pc

(*1)The value at the ambient temperature is 25℃. Also, the specifications may not be met outside of the ambient temperature range.

(*2)The transfer time of temperature can be set up.

(*3)Voltage variation rate is ±5% for AC 100 V.
