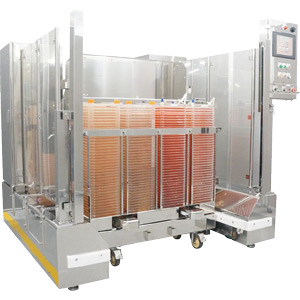

TAITEC Automatic Manipulator A Dedicated Manipulator For Handling Multi-Layer Incubators

Object of observation: Resin multi-layer incubator , Thermo Fisher Scientific: Cell Factory,Corning International: Cell Stack Each company's product has 1 to 40 tiers or a maximum height of 800mm

Device weight: 1,070kg (Excluding Trolley)

Allowable load (static load): 200kg (including container and upper trolley)

Turning motion: -5 (right) to 135 (left) ° (-30 to 150 ° option)

Inclined motion: -20 (front) to 30 (rear) °

Turning speed: 1 to 60 ° / sec (operating speed excluding acceleration / deceleration range)

Inclined speed: 1 to 60 ° / sec (operating speed excluding acceleration / deceleration range)

Shaking motion: Plane reciprocating motion, forward/backward, left/right, Diagonal and Rotational .

Shaking speed: Maximum 100mm / sec (at 30mm / 100rpm)

Shaking amount: Maximum 50mm

Power supply: AC200 to 230V 50/60Hz 9kVA(AC380 to 440V option)

Containers handled: 40 (52) stage multi-layer incubator x 4 (10-stage multi-layer incubator x 8, option)

Installation environment:

Temperature: 5 ℃ -30 ℃

Humidity: 50% or less (30 ℃, non condensation)

Floor: Load capacity 1t / m2, non gradient recommended
