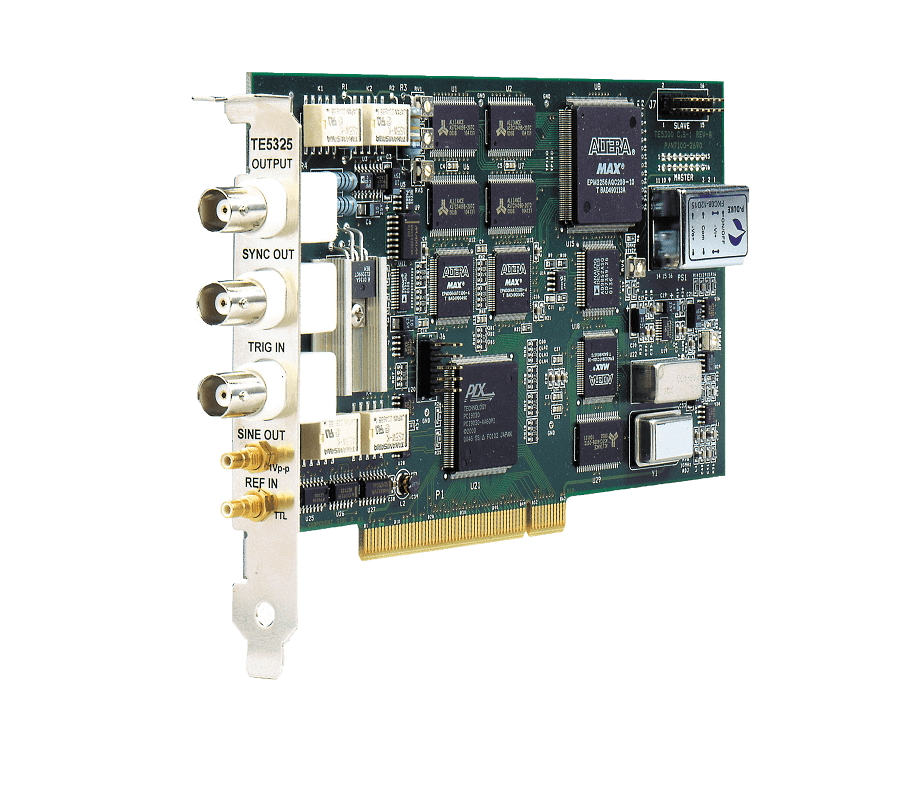

Tabor Electronics 5235 PCIBus Arbitrary Waveform Generator (1CH; 25MHz; 50MS/s)

Single-channel 50MS/s PCI-Based waveform generator

Sine waves to 25MHz, Square to 15MHz

SINE OUT to 50MHz, 1Vp-p

14 Bit vertical resolution

1M waveform memory

1 ppm clock accuracy and stability

Extensive modulation capabilities AM, FM, Arbitrary FM, FSK, Ramped FSK and Sweep

14 digits sample clock frequency setting, limited by 1µS/s

Waveform sequencing with up to 4096 segments and sequences

Occupies a single slot only

Ultra fast waveform downloads using DMA

ArbConnection software for easy waveform creation

For more details on all features, please refer to the datasheet
