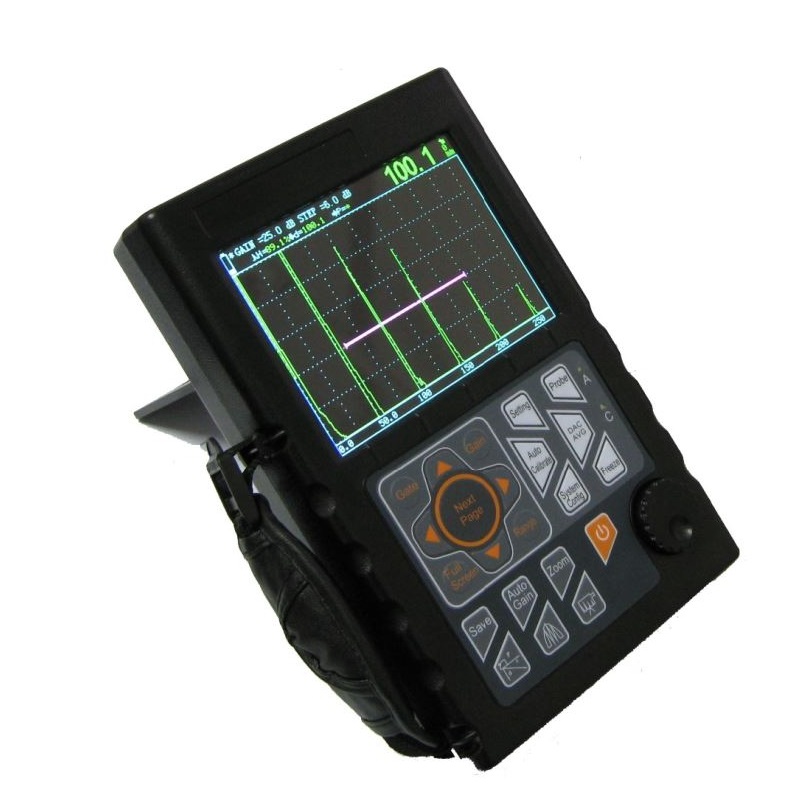

T-measurement YFD-300 Ultrasonic flaw detector (0~10000 mm)

Range of scanning (mm): 0~10000

D-delay (us): -20~+3400

P-delay: 0.0~99.99

MTLVEL(m/s): 1000~15000

Sensitivity Leavings: >=62 dB

Dynamic range: >=34dB

Frequency Range (MHz): 0.5~20

Battery Li battery: 7.4V,4800mAh

Power adaptor:

Input 100V~240V/50Hz~60Hz

Output 9VDC/1.5A

Working temperature: -20oC~50oC

Working humidity: 20%~90%

Port type: BNC or LEMO 001

Working mode: Single probe (receiving and sending), double probe (one for receiving and another for sending), transmission (transmission probe)

Standard Accessories:

Main unit

1.5A/9V power adaptor

2 x probe connecting cable

Carrying case

Instruction manual

Straight probe 3/4” 2.5MHz

Angle probe 8×9 60°4MHz

Optional Accessories

Serial cable (9 pin)

Communication software for PC
