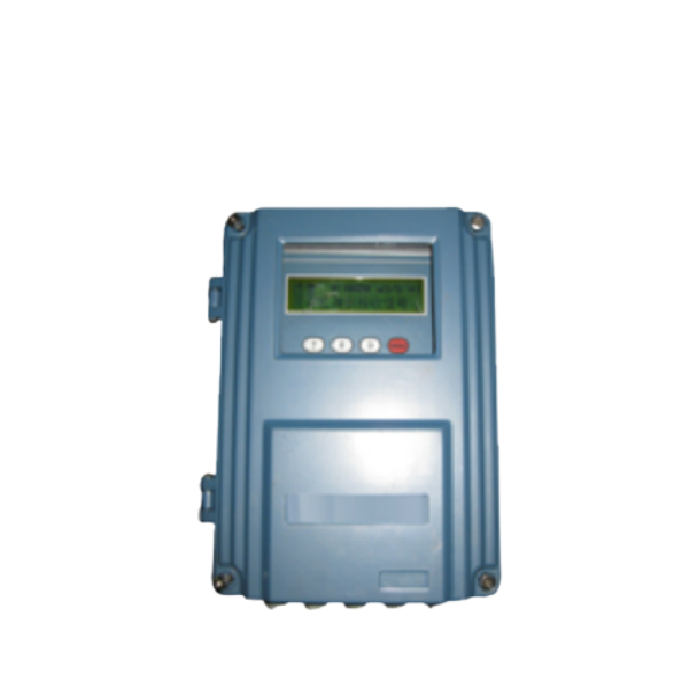

T-measurement TDS-100F1 Wall Mount Ultrasonic Flow Module

Better than 1% accuracy

0.2% of repeatability

2×20 English letters LCD display

85~264VAC or 24VDC power supply

Pipe diameters from 15mm to 6000mm

Operate with clamp on, insertion and flow-cell transducer

Five channel analogue 4-20mA input. (version 7)

One channel programmable 4-20mA output

Two channel programmable digital out (isolated OCT and Relay)

Frequency output

IP65
