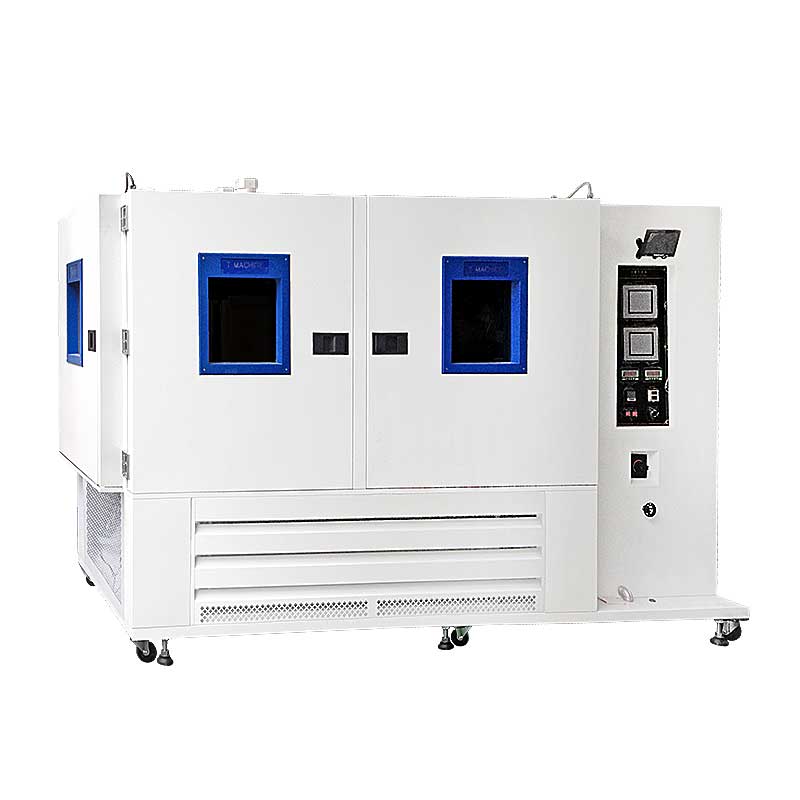

T-MACHINE TMJ-9812 Car Lamp Condensation Tester (40℃~150℃, 10%～98%RH)

Internal(WxDxH)mm: 1000 x 1000 x 1000

External(WxDxH)mm: 3075 x 1754 x 2280

Temp. Range (Right and Left Area): –40℃~150℃

Hum. Range (Right and Left Area ): 10%～98%RH

Temp. Change Rate (Right and Left Area ):

Heating：≧3℃/min（Overall Average）

Cooling：≧1℃/min（Overall Average）

Lighting System (Left Area):

Spectral Range：280~3000 nm

Irradiation Intensity：800~1200 W/m2

Lamp Power：2000 W Metal Halide Lamp

Water Flow Control

Water Temp.：5~35℃

Water Flow：1.8~39.2 L/min

Nozzles: 4 set(Position Adjustable)

Power: 380 V 3Φ
