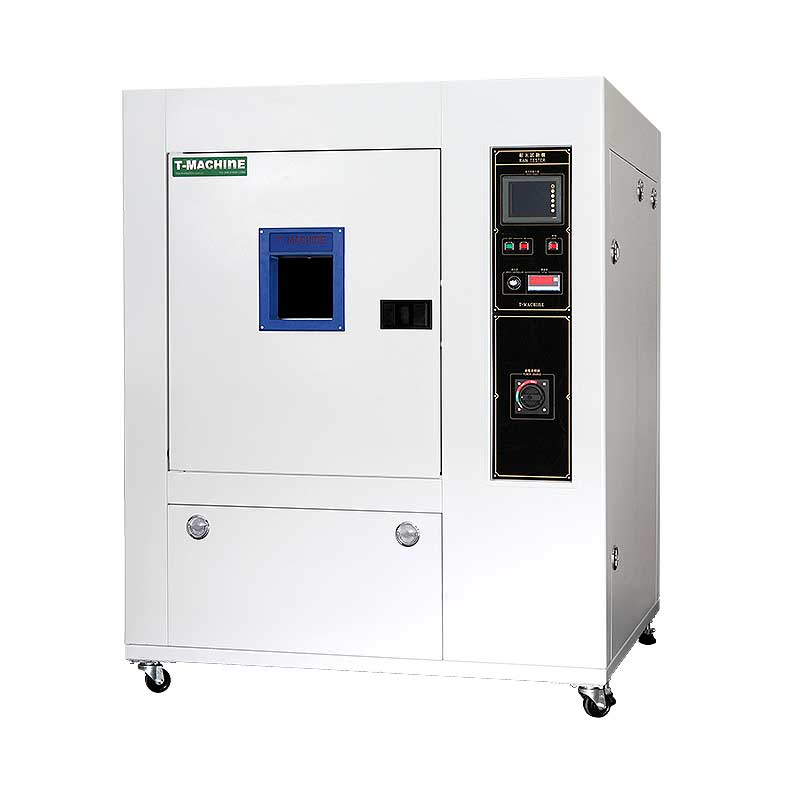

T-MACHINE TMJ-9710A Rain Tester

Test Applicable: R1, R2, S1, S2, SAE

Internal(WxDxH)mm: 1000 x 1100 x 1000

External(WxDxH)mm: 1450 x 1300 x 2000

JIS Test

Water Flow/ Pressure

R1: ≧1.9 L /min/ 0.1 kgf/cm

R2: ≧3.2 L /min/ 0.3 kgf/cm2

S1: ≧24.5L/min/ 1 kgf/cm2

S2: ≧39.2 L /min/ 3 kgf/cm2

SAE Test

Spray Angle：45°±5°

Water Flow：2.5+1.6-0 mm/min

Platform Rotating Speed：4rpm

Platform Rotating Speed: 0~17 RPM (Adjustable)

Nozzle Rotating Speed: 23 RPM

Power: 220V 1Φ
