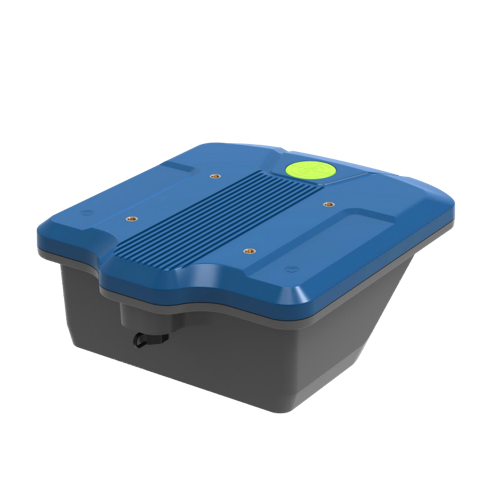

SZHUAJU RD-600 Radar Flow Meter (0.03~20m/s; 40m)

Dimensions: 227×190×83.3 (mm)

Radar Velocity Sensor

Radar Power: 100mW

Radar Frequency: 24GHz

Maximum Measuring Range: 40m (related to flow state)

Velocity Measurement Range: 0.03~20m/s

Velocity Measurement Accuracy: ±0.01m/s; ±2%FS

Antenna Angle: 12°

Radar Water Level Meter

Radar Power: 100mW

Radar Frequency: 80GHz

Measurement Range: 40m

Measurement Accuracy: ±3mm, ±0.05%FS

Antenna Angle: 8°

Other Specifications

Data Transmission Method: RS485 (default) / RS232 (optional) / SDI12 (optional) / MODBUS protocol

Analog Output: 4-20mA (optional)

Operating Temperature: -35°C to 70°C

Storage Temperature: -40°C to 70°C

Lightning Protection Level: 6KV

Protection Grade: IP68

Operating Voltage: 7-32VDC; 5.5-32VDC (optional)

Operating Current (@DC12V): Working mode: ≤120mA; Standby mode: ≤1mA

Product Introduction

The RD-600 radar flow meter is a non-contact, integrated flow monitoring device independently developed and designed by Shenzhen Huaju Scientific Instruments Co., Ltd. It enables real-time, non-contact measurement of water level, velocity, and flow rate in rivers, open channels, reservoirs, sewage networks, and flood control early warning systems. Based on built-in software algorithms, it calculates and outputs instantaneous cross-sectional flow rate and cumulative flow rate, while also outputting flow velocity and water level. It easily connects to database platforms and allows viewing of measurement information on cloud platforms. Supporting digital (RS485, RS232) or analog (4-20mA) transmission interfaces, it features low power consumption, compact size, high reliability, simple operation, and convenient maintenance. The measurement process is unaffected by environmental factors such as temperature, air pressure, sediment, dust, river pollutants, floating debris, and air pollution.

This series of flow meters can also be equipped with a built-in RTU function, which allows field data to be directly uploaded to the cloud platform via a built-in wireless communication unit, and enables remote debugging and equipment program upgrades. It features high integration, small size, easy installation, and low maintenance.
