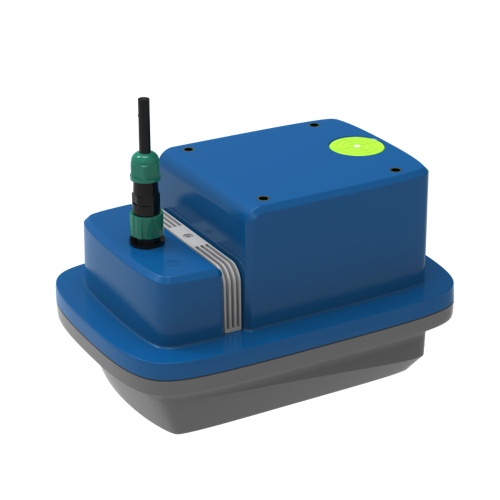

SZHUAJU RD-300-R Radar Water Level Meter (15/40m/70m/110m; ±3mm, ±0.05%FS; RTU)

Dimensions (mm): 215 * 144 * 124 (mm)

Housing Material: Aluminum Alloy / ASA

Measurement Range (m): 15m / 40m / 70m / 110m

Blind Zone: 20cm (Default)

Measurement Accuracy: ±3mm, ±0.05%FS

Resolution: 1mm

Tilt Sensor Accuracy: ±0.1°

Radar Antenna: Planar microstrip array antenna

Measurement Duration: 0-180s, adjustable

Measurement Interval: 1-18000s, adjustable

Radar Frequency: 24GHz / 80GHz

Beam Angle: 11° / 8°

Bluetooth Debugging: Bluetooth 4.2 or above, Transmit power +8dBm, Receiver sensitivity -95dBm at 0.1%BER

Digital Interface: RS485 (Default) / RS232 (Optional) / SDI12 (Optional) / MODBUS Protocol

Analog Output: 4-20mA (Optional)

Operating Temperature: -35°C ~ 70°C

Storage Temperature: -40°C ~ 70°C

Protection Rating: IP68

Lightning Protection Level: 6KV

Operating Voltage: 7-32VDC (Default), 5.5-32VDC (Optional)

Operating Current (@DC12V): Operating mode ≤ 45mA, Data uploading ≤ 60mA, Sleep mode ≤ 1mA

RTU Upload Interval: 5 mins - 24 hours (Configurable)

The RD-300 series radar level gauge is a non-contact planar radar level gauge used for measuring surface water levels. It employs Frequency Modulated Continuous Wave (FMCW) radar technology to measure the liquid level. This energy-saving, non-contact measurement technology makes it unaffected by ambient temperature, water vapor pressure, air dust, pollutants, and sediment in the water. Optimized algorithms ensure more accurate and stable measurement results. A mobile app connects wirelessly via Bluetooth for convenient on-site debugging and maintenance. This series of level gauges can also be equipped with a built-in RTU function, which directly uploads on-site data to a cloud platform via a built-in wireless communication unit, enabling remote debugging and equipment program upgrades. It features high integration, small size, easy installation, and low maintenance.
