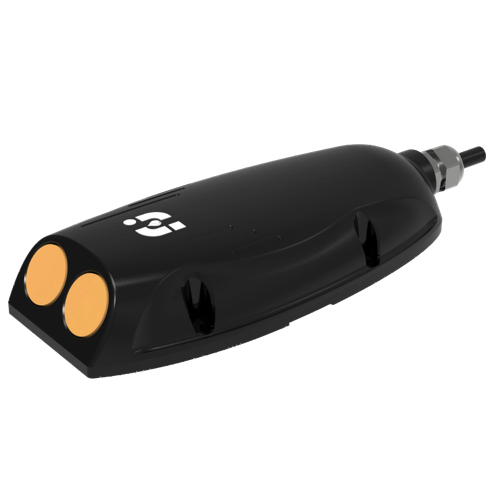

SZHUAJU HJ-UD-A Ultrasonic Doppler Flow Meter (±0.02m/s ~ ±5m/s; 0 ~ 10m)

Dimensions (mm): 159*76*30

Flow velocity range (m): ±0.01m/s ~ ±5m/s

Water level range (m): 0 ~ 10m

Flow Velocity Accuracy: ±0.5% FS, ±2 mm/s

Flow Velocity Resolution: 1 mm/s

Water Level Accuracy: ±1% FS

Water Level Resolution: 1 mm

Min. Measurable Water Level: 2.5 cm

Temperature Range: -20 ~ 80°C

Supply Voltage: 7 - 32 VDC

Supply Current: 40mA (Avg), 500mA (Peak) @ 12V

Cable Length: 10 m

Ingress Protection: IP68

Data Output: RS485, MODBUS Protocol
