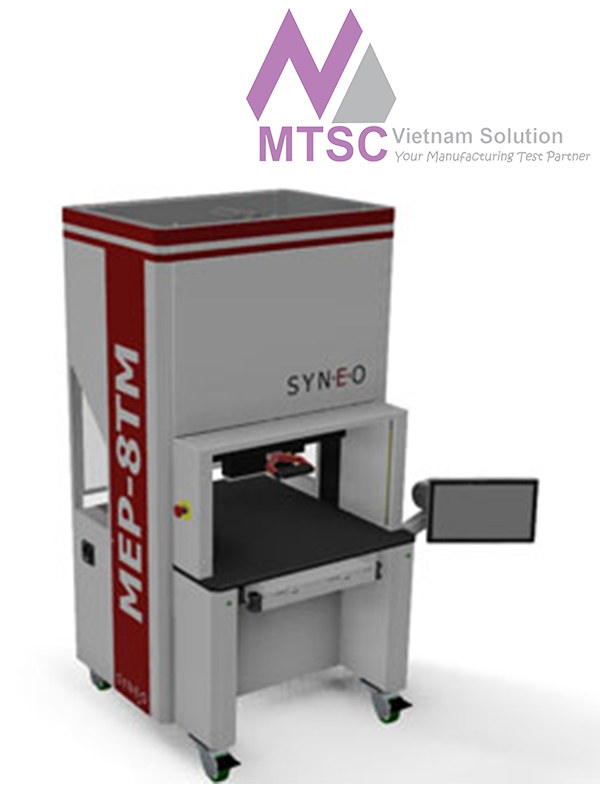

SYNEO MEP-8TM Manual Electric Press

Hãng sản xuất: SYNEO

Model: MEP-8TM

Bảo hành: 12 tháng

Opening 91 CM x 91 CM deep (36" x 36")

PCB 76 CM x 91 CM (30" x 36")

All electric press, hi-frame design

8-ton capacity

Windows PC control with touchscreen monitor, keyboard, mouse

Full force available throughout travel

Head is manually moveable throughout opening

Flat rock press head 305 MM x 38 MM (12" x 1.5")

Teflon Hard Coat aluminum table

Two-hand safety actuation

Press to force or height with error detection

Dynamic force adjustment using PAST, PAR or FAT

Fully automatic setup, no manual adjustments

Board thickness measurement

220 VAC 1 phase, 20 Amps, 50/60 Hz

Air 80 psi for air table & sliding head air bearing

2,300 lbs. approx. weight

Shipping : 1 pallet, 190 CM x 170 CM x 196 CM high, 1900 lbs

Press Force: 8 Tons

Two Stage Force(2SF): YES

True Distance Measurement (TDM): YES

Board Size: 830mm x 1060mm

Press Anvil Size: 279mm x 38mm

Dimensions: 1095 x 1095 x 1855mm
