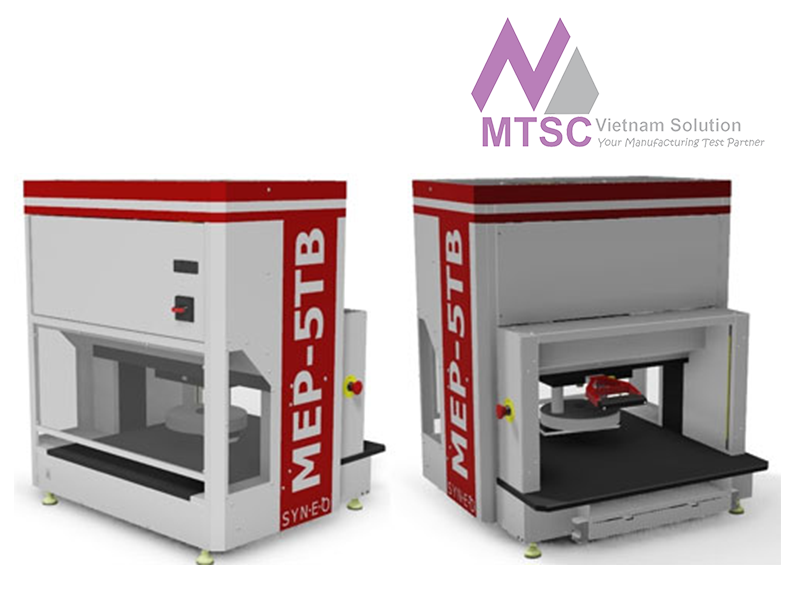

SYNEO MEP-5TB Tabletop connector press-fit

Hãng sản xuất: SYNEO

Model: AEP-8T

Bảo hành: 12 tháng

Opening 56 CM x 61 CM deep (22" x 24")

PCB 46 CM x 61 CM (18" x 24")

All electric press, hi-frame design

5-ton capacity

Windows PC control with touchscreen monitor, keyboard, mouse

Full force available throughout travel

Head is manually moveable throughout opening

Flat rock press head 203 MM x 38 MM (8" x 1.5")

Teflon Hard Coat aluminum table

Two-hand safety actuation

Press to force or height with error detection

Dynamic force adjustment using PAST, PAR or FAT

Machine Vision bar code reading and PCB locating

Fully automatic setup

Board thickness measurement

16" maximum tool length

Press to force or height with error detection

Manual head rotation (0, 90 degrees)

110 or 220 VAC 1 phase, 15 Amps, 50/60 Hz

Air 80 psi for air table only

350 lbs. approx. weight

Shipping: 1 pallet, 152 CM x 122 CM x 140 CM high, 500 lbs

Press Force: 5 Tons

Two Stage Force(2SF): OPTIONAL

True Distance Measurement (TDM): OPTIONAL

Board Size: 580mm x 800mm

Press Anvil Size: 279mm x 38mm

Dimensions: 870 x 830 x 1120mm
