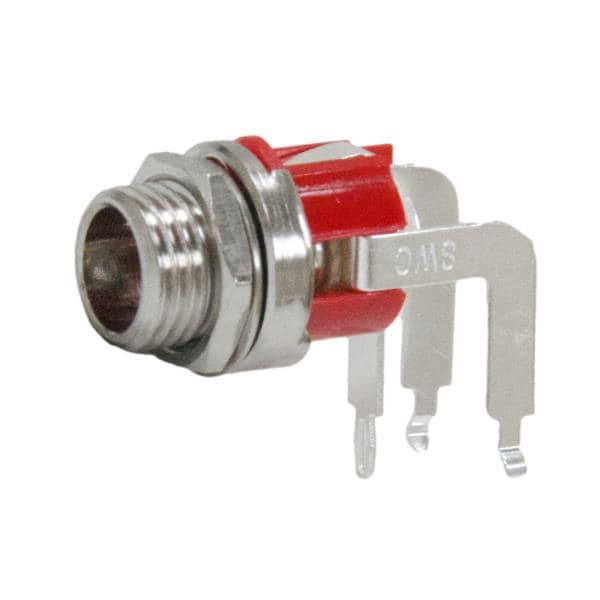

Switchcraft 721RALP Jacks Low Profile RAPC Mount DC Power Jack, 2.1mm Center Pin, Short Bushing
ManufacturerSwitchcraft(View more products from this manufacturer)
Model721RALP
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Contact Gender: Pin (Male)
Current Rating: 5 A
Mounting Angle: Right Angle
Mounting Style: Panel
Voltage Rating: 24 VDC
Contact Plating: Nickel
Contact Material: Copper Alloy
Housing Material: Thermoplastic (TP)
Termination Style: Solder Lug
Insulation Resistance: 10 GOhms
Inside Contact Diameter: 2.1 mm
Outside Contact Diameter: 5.5 mm
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 55 C
