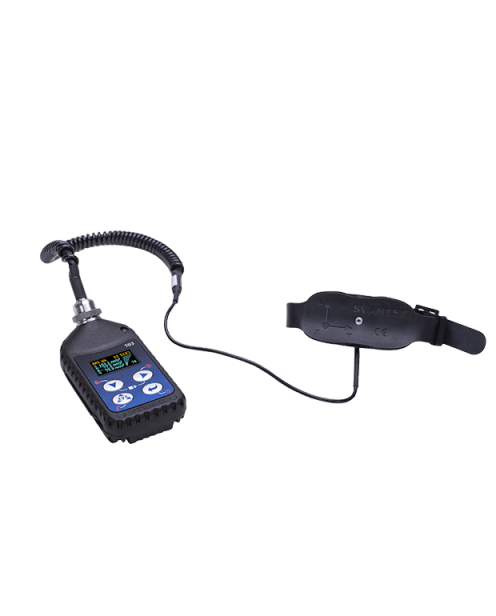

Svantek SV 103 Hand-Arm Vibration Dosimeter (0.2–2000 m/s²; 0.1 Hz–2 kHz)

Standards: ISO 8041:2021, ISO 5349-1:2001; ISO 5349-2:2001

Meter Mode: ahw (RMS), ahv (VECTOR), Max, Peak, Peak-Peak, A(8) Daily Exposure, ELV Time (TIME LEFT TO LIMIT), EAV Time (TIME LEFT TO ACTION)

Filters: Wh (ISO 5349) and corresponding band limiting filter (ISO 8041)

RMS Detector: Digital true RMS detector with Peak

Measurement Range: 0.2 m/s² RMS ÷ 2000 m/s² Peak

Frequency Range: 0.1 Hz ÷ 2 kHz (transducer dependent)

Data Logger: Time-history data including meter mode results and spectra

Time-Domain Recording: Simultaneous x, y, z time-domain signal recording (optional)

Analyser: 1/1 octave real-time analysis (optional) with center frequencies from 1 Hz to 1 kHz

1/3 Octave Analysis: Real-time analysis (optional) from 0.8 Hz to 1.3 kHz

Accelerometer: Detachable SV 107 MEMS based tri-axial accelerometer with hand straps in accordance to ISO 5349 (optional)

Memory: 8 GB

Display: OLED 128 × 64 pixels

Interfaces: USB 2.0 client

Power Supply: Ni-MH rechargeable cells, operation time > 24 hours (depending on configuration)

USB Interface: 500 mA HUB

Environmental Conditions: Temperature from -10 °C to 50 °C; humidity up to 90 % RH, non-condensed

Dimensions: 88 × 49.5 × 19.2 mm (instrument without accelerometer, cable and mounting stripes)

Weight: 150–160 grams with SV 107 accelerometer and one of vibration contact adapters
